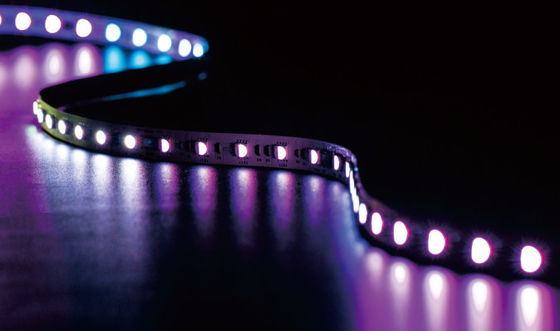

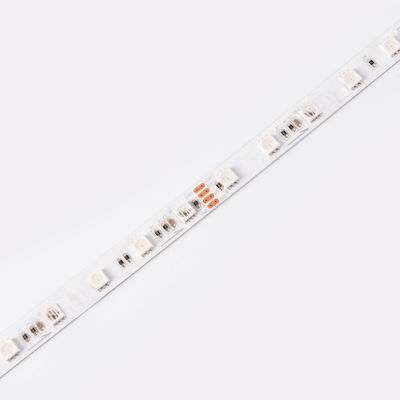

SPI Digital SMD 5050 RGB LED Strip DC24V 14.4W 10mm RGBIC LED Strip Lights
| Place of Origin | China |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHs |
| Model Number | S560RGB-24V-10mm-SPI |
| Minimum Order Quantity | Negotiable |
| Price | Negotiation |
| Packaging Details | Standard package |
| Delivery Time | 3-7days sample,mass order within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50000m/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC24V | Power | 14.4W/Meter |
|---|---|---|---|
| PCB Width | 10mm | LED Qty/m | 120Leds/M |
| Product Size | 5000*10*2.1mm | Cuttable Size | 6 LED/100mm |
| Beam Angle | 120° | IP Grade | IP20/IP55/IP65/IP67 |
| Warranty | 3-years | Length | 5Meter/Roll |
| Color Tempertature | RGB | Package | 5m/roll ( Customized Length Available, Color Box / Anti-static Bag Packing ) |
| Other | OEM & ODM, One To One Communication | ||
| Highlight | SPI RGB LED Strip,smd 5050 RGB LED Strip DC24V,10mm super bright LED |
||
Product Description
SPI Digital SMD 5050 RGB LED Strip DC24V 14.4W 10mm RGBIC LED Strip Lights
Q1: What is SPI LED strip?
A1: Serial Peripheral Interface (SPI)
SPI is a full-duplex serial communication protocol that is commonly used for inter-chip communication such as the interface between a microcontroller and flash memory. Many RGB and RGBW LED strips are made of various different IC types that use the SPI communication protocol.
SPI is a full-duplex serial communication protocol that is commonly used for inter-chip communication such as the interface between a microcontroller and flash memory. Many RGB and RGBW LED strips are made of various different IC types that use the SPI communication protocol.
A2: What are the differences between DMX512 and SPI? DMX512 signal is parallel transimission like parallel circuit; SPI signal is series transimisstion.
Product Description
1. 24V single point single control, 60pixel/M SPI signal
2. External IC, continuous transmission even when 1 light bead gets broken
3. Suitable for small & independent application
4. 2-year warranty
Product Parameter
| Model No | S560RGB-24V-10mm-SPI |
| PCB Width | 10mm |
| LED Qty/m | 60Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | 24V DC |
| Power(W) | 14.4W/Meter |
| Luminous(lm/m) | max 385 |
| LED Chip Brand | Sanan |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*12*2.1mm |
| Package(m/roll) | 5M/roll (1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
| Cutting Unit | 6 LED/100mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE |
| Warranty | 2 Years |
| CRI | CCT | LM/M | LM/W |
| RGB | / | 480 | 29 |
| R | 620nm | / | / |
| G | 520nm | / | / |
| B | 456nm | / | / |
Product Images
Application
Support and services
Technical Support and Service for Digital RGB LED Strip
We provide comprehensive support and service for all our Digital RGB LED Strip products.
Our experienced team of experts are available to provide technical assistance for any questions you may have. With years of experience, we are able to provide efficient solutions to any technical issues you may have with your Digital RGB LED Strip.
We also offer a comprehensive range of after-sales services. We are committed to providing you with a hassle-free customer experience.
FAQ
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
