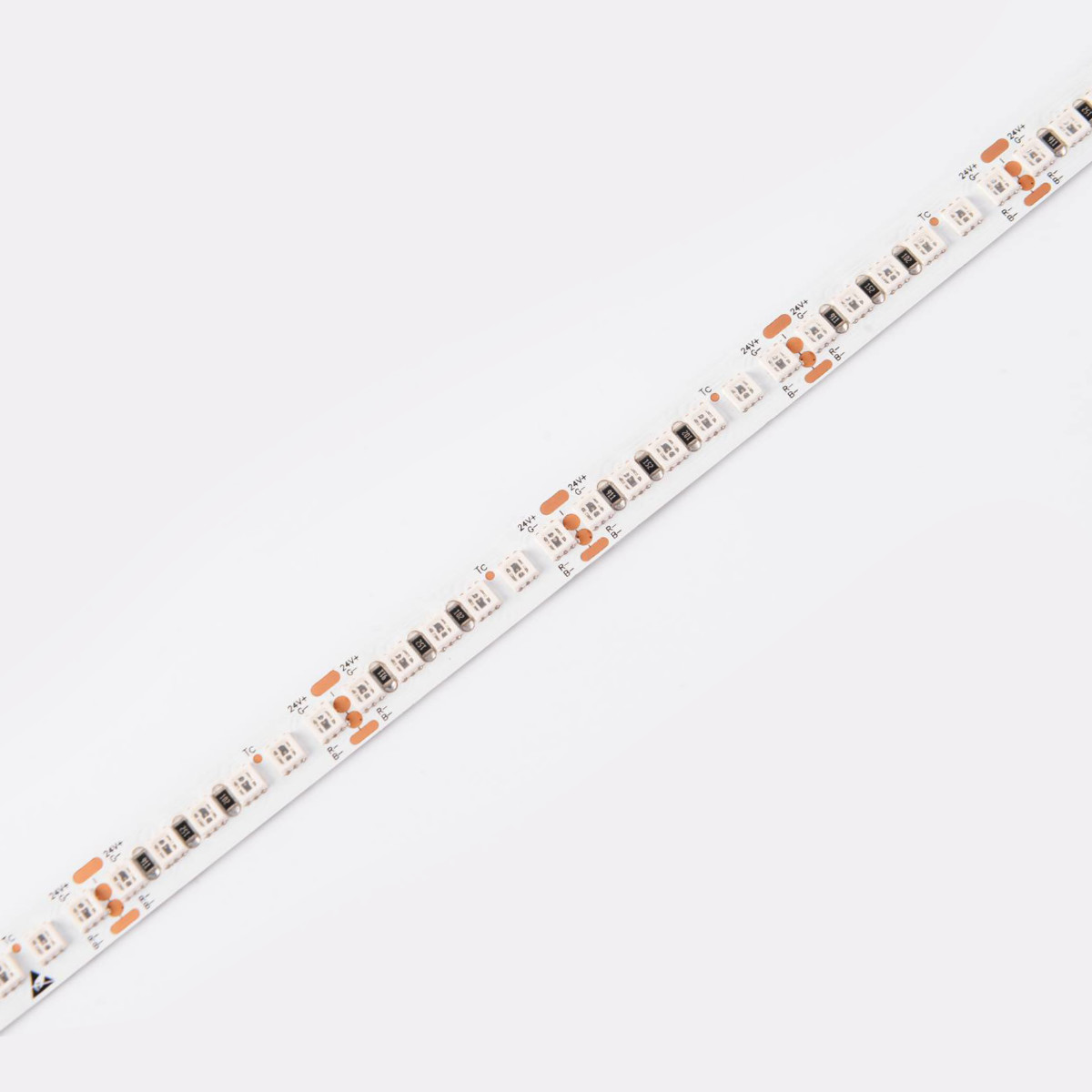

10mm RGB LED Strip 168LEDs/M 24V 5m 3838 Colour Changing LED Strip
| Place of Origin | China |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHs |
| Model Number | S1168RGB-24V-10mm |
| Minimum Order Quantity | Negotiable |
| Price | Negotiation |
| Packaging Details | Standard package |
| Delivery Time | 3-7days sample,mass order within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50000m/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC24V | Power | 17.3W/Meter |
|---|---|---|---|
| PCB Width | 10mm | LED Qty/m | 168Leds/M |
| Product Size | 5000*10*1.5mm | Cuttable Size | 6 LED/35.71mm |
| Beam Angle | 120° | IP Grade | IP20/IP55/IP65/IP67 |
| Warranty | 3-years | Length | 5Meter/Roll |
| Color Tempertature | RGB | Package | 5m/roll ( Customized Length Available, Color Box / Anti-static Bag Packing ) |
| Other | OEM & ODM, One To One Communication | ||
| Highlight | 168LEDs/M rgb room lighting,17.3W/M rgb room lighting,high density led lights Colorful |
||
Product Description
10mm RGB LED Strip 168LEDs/M 24V 5m 3838 Colour Changing LED Strip
Q: What is a SMD RGB?
A:SMD RGB LED technology allows the colour of light to be changed by using three diodes: red, blue and green. In order to vary the colour of the light, these diodes are mixed according to precise intensities
Q: Can RGB strip lights be cut?
A: LED Strip Lights are such a versatile product due to the fact that they can easily be cut on the given cut lines and connected at any point between the copper dots on the LED Strip Lights, cut lengths vary between products.
Product Description
1. SMD 3838,RGB led strip
2. High density RGB colorful strip
3. Different IP protection available, no problem for indoor and outdoor
4. Widely adaptable to all types of controllers
5. Working time >36000H
6. High quality FPC, high thermal 3M adhesive
Product Parameter
| Model No | S1168RGB-24-10mm |
| PCB Width | 10mm |
| LED Qty/m | 168Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 17.3W/Meter |
| Luminous(lm/m) | 534max |
| LED Chip Brand | Sanan |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*10*1.5mm |
| Package(m/roll) | 5M/roll ( Customized length available ) |
| Cutting Unit | 6 LED/35.71mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 3 Years |
| CRI | CCT | LM/M | LM/W |
| RGB | / | 480 | 29 |
| R | 620nm | / | / |
| G | 520nm | / | / |
| B | 456nm | / | / |
Product Images
Project Application
Our Services
1. We can help all our customers in installing, design, and OEM/OED service.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. We have rich experiences in different projects, we can provide professional customize service for customers who focus on project.
5. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
6. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
FAQ
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
