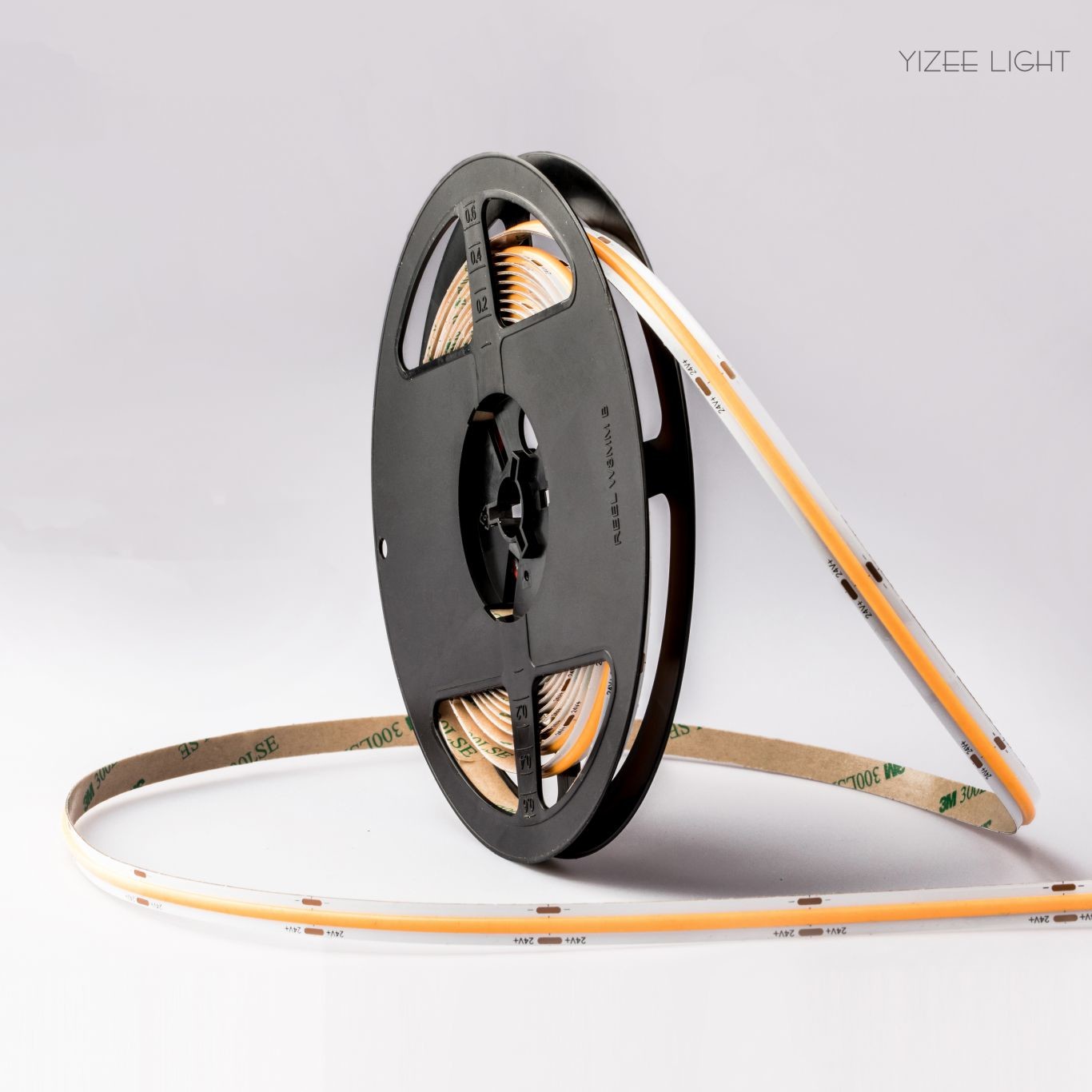

4.5mm Slim COB Led Strip 528 Chips 4W Dotless Led Rope Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC12V | Power(W) | 4W/Meter |
|---|---|---|---|
| LED Chips/m | 528 Led Chips/M | PCB Width | 4.5mm |
| Cutting Unit | 22.73mm | CRI(Ra) | Ra >80(Ra >90/Ra >95 Optional) |
| CCT(K) | 2700/3000/4000/6000k | IP Grade | IP20/IP65(nano) |
| Lumen/Meter | 364-400 | Beam Angle | 120° |
| Product Size(mm) | 5000*4.5*2.7mm | Adhesive Tape | 55230H 3M Tape |
| Dimmable | Yes | Certificate | UL,CE |
| Warranty | 3 Years | ||
| Highlight | 4.5mm COB led strip,Slim COB led strip,4W Dotless led rope lights |
||
Product Description
4.5mm Slim COB Led Strip 528 Chips 4W Dotless Led Rope Light
Q1: How does a COB LED work?
A1: Chip-on-Board or "COB" refers to the mounting of a bare LED chip in direct contact with a substrate (such as silicon carbide or sapphire) to produce LED arrays. COB LEDs have a number of advantages over older LED technologies, such as Surface Mounted Device ("SMD") LEDs or Dual In-line Package ("DIP") LEDs
Q2: Can cob LED strip be cut?
A2: To cut the COB strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.
Product Description
1. Super slim with only 4.5mm wide board, better to be in conjunction with profiles
2. SDCMx≤3,1 Bin forever, CRI80/90 optional
3. High quality PFC, high thermal 3M adhesive
4. With life span over 60000H
5. Suitable for various dimming controllers
Product Parameters
| Model No | SF528-12V-4.5mm |
| PCB Width | 4.5mm |
| LED Qty/m | 528Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC12V |
| Power(W) | 4W/Meter |
| Luminous(lm/m) | 364~400 |
| LED Chip Brand | Sanan |
| LED BINs | 5-Step, one BIN only for each order |
| CRI(RA>) | Ra >80(Ra >90/Ra >95 optional) |
| Color Tempertature | 2700/3000/3500/4000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 180 |
| Product Size(mm) | 5000*4.5*2.7mm |
| Package(m/roll) | 5M/roll ( Customized length available) |
| Cutting Unit | 22.73mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 3 Years |
| CRI | CCT | LM/M | LM/W |
| ＞90 | 2700K | 364 | 91 |
| 3000K | 382 | 95 | |
| 3500K | 400 | 100 | |
| 4000K | 400 | 100 | |
| 6000K | 382 | 95 |
