6000k 9.6W/M Led Strip Cob CRI>90 480Chips/M Led Flexible Dotless Strip Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC24V | Power(W) | 9.6W/Meter |
|---|---|---|---|
| PCB Width | 8mm | LED Chips/m | 480Led Chips/M |
| Cutting Unit | 50mm | CRI(Ra) | CRI >90 |
| CCT(K) | 1900/2700/3000/4000/6000k | IP Grade | IP20/IP65(nano) |
| Lumen/Meter | 734-950 | Beam Angle | 120° |
| Product Size(mm) | 5000*8*2.7mm | Adhesive Tape | 55230H 3M Tape |
| Certificate | UL,CE | Warranty | 3 Years |
| Highlight | 6000k led strip cob,9.6W/M led strip cob,480Chips/M led flexible dotless strip light |
||
Product Description

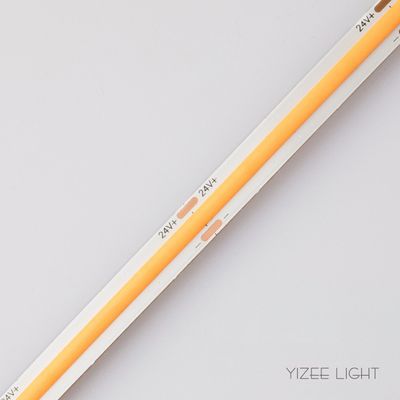

8mm 9.6W/M COB LED Strip CRI>90 480Chips/M Dot Free Flexible Strip
Product Description
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Only 5mm width, suitable for narrow space, suitable for furniture or any corner application.
4. Adopt Flip-Chip technology, no dead light risk.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Only 5mm width, suitable for narrow space, suitable for furniture or any corner application.
4. Adopt Flip-Chip technology, no dead light risk.
Product Parameters
| Model No | SF480-24V-8mm |
| PCB Width | 8mm |
| LED Qty/m | 480Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 9.6W/Meter |
| Luminous(lm/m) | Max950 |
| LED Chip Brand | Sanan |
| LED BINs | 5-Step, one BIN only for each order |
| CRI(RA>) | Ra >90 |
| Color Tempertature | 2700/3000/4000/5000/6000k |
| IP Rate | IP20 IP65(nano) |
| View Angle | 180 |
| Product Size(mm) | 5000*8*2.7mm |
| Package(m/roll) | 5M/roll (1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
| Cutting Unit | 50mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 3 Years |
| CRI | CCT | LM/M | LM/W |
| ＞90 | 1900K | 734 | 76 |
| 2700K | 864 | 90 | |
| 3000K | 907 | 94 | |
| 4000K | 950 | 99 | |
| 6000K | 907 | 94 |

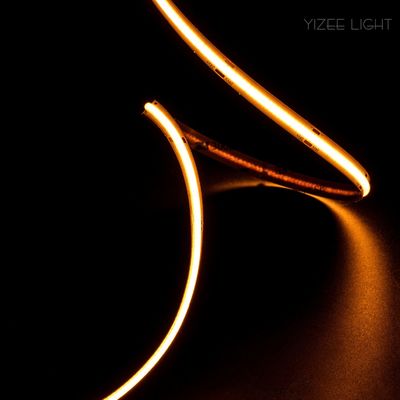

Product Images
Applications
YIZEE Lighting is a technology innovation enterprise focusing on LED product development and sales, relying on professional technical ability to provide customers around the world with humanized and Intelligent lighting solutions for indoor and outdoor space. The company has professional technical personnel and perfect after- sales service team, products in strict accordance with the ISO9001:2015 quality management system, strictly control the quality, to provide customers with a full range of services, always adhere to the concept of innovation, strive to become the L .ED lighting industry promoter and explorer.
As a research and development technology innovation enterprise, the company has carried out school- enterprise cooperation with Fudan University and Dalian Polytechnic University in the direction of "Intelligent lighting" and "Health lighting", with "Intelligent lighting" and "Health lighting" as the core, to expand the product field. At present, the company's products cover: office lighting, commercial lighting, industrial lighting, architectural lighting and sO on. Ilt can meet the lighting needs of villas, office buildings, factories, shopping malls, hotels, clubs, schools, hospitals, libraries, airports , stations, parks, public buildings and other places.
