6mm Width DC 24V Flexible LED Strip SMD2835 Flexible Led Lights 5M 168LEDs/M
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flexible LED Strip | Input Voltage(v) | DC24V |
|---|---|---|---|
| Power(W) | 7.2W/Meter | PCB Width | 6mm |
| Led TCOBype | SMD2835 | LED Qty/m | 168Leds/M |
| Cutting Unit | 7LED/42mm | CRI(Ra) | CRI >90 (CRI>80,CRI >95 Optional) |
| CCT(K) | 1900/2300/2700/3000/3500/4000/5000/6000k | IP Grade | IP20/IP55/IP65/IP67 |
| Lumen/Meter | 1565~1933 | Beam Angle | 120° |
| Product Size(mm) | 5000*6*1.5mm | Adhesive Tape | 55230H 3M Tape |
| Dimmable | Yes | Certificate | UL,CE |
| Warranty | 5 Years | ||
| Highlight | 6mm flexible light strips,flexible light strips 168LEDs/M,7.2w/M Narrow Led Strip |
||
Product Description
6mm Width DC 24V Flexible LED Strip SMD2835 LED Strip Non-Waterproof 5M 168LED
Product Description
(1) A variety of color temperature options, 1900-6000K are conventional color temperatures
(2) 3-Step, one BIN only for each order
(2) 3-Step, one BIN only for each order
(3) 5 years warranty
Product Parameters
| Model No | S8168-24V-6mm |
| PCB Width | 6 mm |
| LED Qty/m | 168Leds/M |
| PCB materials | 3Oz Double-sided coated pure copper |
| Voltage(V) | 24V DC |
| Power(W) | 7.2W/Meter |
| Luminous(lm/m) | max 792 |
| LED Chip Brand | Sanan |
| LED BINs | 3-Step, one BIN only for each order |
| CRI(RA>) | >80(CRI >90 / CRI >95 optional) |
| Color Tempertature | 1900/2300/2700/3000/3500/4000/5000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*6*1.5mm |
| Package(m/roll) | 5M/rol (Customized length available) |
| Cutting Unit | 7LED/42mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | Lm/m | Lm/W | Energy Efficiency Class |
| ＞90 | 1900k | 612 | 85 | G |
| 2300k | 672 | 93 | G | |
| 2700k | 720 | 100 | F | |
| 3000k | 756 | 105 | F | |
| 3500k | 768 | 107 | F | |
| 4000k | 792 | 110 | F | |
| 5000k | 792 | 110 | F | |
| 6000k | 756 | 105 | F |

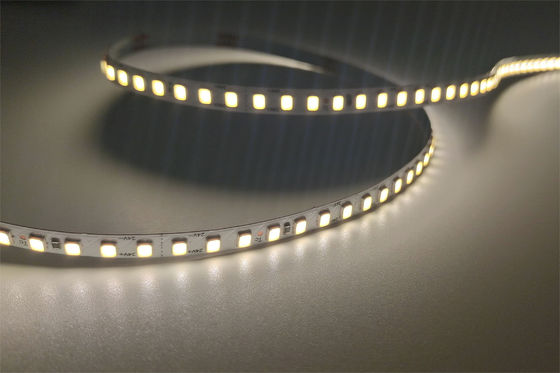

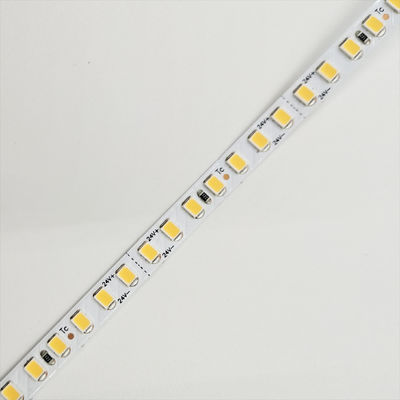

Product Images
Applicaions
FAQ
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
