5mm Width Flexible LED Strip 24V 160LEDs/M 14W for Indoor Lighting Led Ribbon
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHs |
| Model Number | S8160-24V-5mm |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Delivery Time | 7-10 working days according to quantity. |
| Payment Terms | T/T, PayPal , Cash |
| Supply Ability | 50000m/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 24V | Power | 14W/Meter |
|---|---|---|---|
| IP Rating | IP20/IP55/IP65/IP67 | Cutting Unit(mm) | 2LED/16.66mm |
| LED Qty/m | 160leds/m 2825 | CRI(Ra) | >90(CRI >80 / CRI >95 Optional) |
| Color Temperture | 1900/2300/2700/3000/3500/4000/5000/6000 | PCB Width(mm) | 5 Mm |
| Product Size(mm)) | 5000*5*1.5mm | Adhesive Tape | 55230H 3M Tape |
| Package | 5m/roll ( Customized Length Available, Color Box / Anti-static Bag Packing ) | Other Service | OEM & ODM, One To One Communication |
| Highlight | 4.5mm flexible leds,flexible leds 24V 160LEDs/M,14W ribbon led light strip |
||
Product Description
5mm Slim Flexible Leds 24V 160LEDs/M 14W Ribbon Led Light Strip
Product Description
1. Super slim with only 4.5mm wide board, better to be inconjunction with profifiles
2. Offers multi kinds of optional 1900K-6000K white light
3. Life span exceeds 36000H
Product Parameter
| Model No | S8160-24V-5mm |
| PCB Width | 5 mm |
| LED Qty/m | 160Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 14W/Meter |
| Luminous(lm/m) | 1820-1960 |
| LED Chip Brand | Sanan |
| LED BINs | 5-Step, one BIN only for each order |
| CRI(RA>) | Ra >90(Ra >80/Ra >95 optional) |
| Color Tempertature | 1900/2300/2700/3000/3500/4000/5000/6000K |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*5*1.5mm |
| Package(m/roll) | 5M/roll (Customized length available) |
| Cutting Unit | 8 LED/50mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | LM/M | LM/W |
| ＞90 | 2700K | 1782 | 127 |
| 3000K | 1871 | 134 | |
| 3500K | 1960 | 140 | |
| 4000K | 1960 | 140 | |
| 6000K | 1871 | 134 |

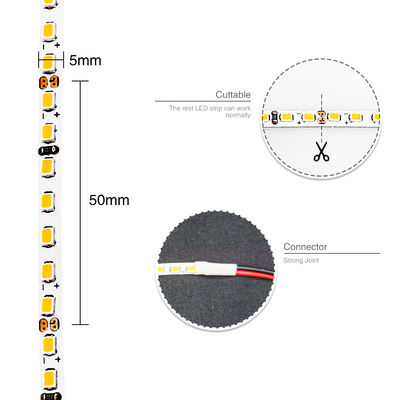

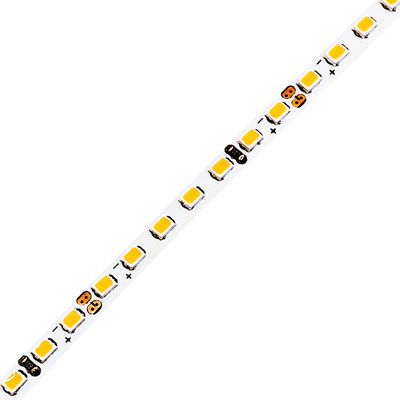

Product Images
Dotless to match with LED aluminium profile
Applications
Our Services
1. We can help all our customers in installing, design, and OEM/OED service.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. We have rich experiences in different projects, we can provide professional customize service for customers who focus on project.
5. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
6. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
FAQ
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
