Custom Edge-to-Edge LED Backlight Panel
Made-to-order acrylic light guide panels for retail displays, commercial store fixtures and OEM backlighting, with a visible luminous surface that extends to the edge.
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Product Type | Custom LED Light Guide Panel / LED Light Sheet |
| Minimum Order Quantity | No MOQ |
| Price | Negotiation |
| Payment Terms | T/T |
| Voltage | 12V DC / 24V DC |
| Material | PMMA Acrylic |
| Panel Thickness | 15mm / 25mm |
| Light Options | Custom CCT / Tunable White / RGB / RGBW |
| Control Options | Dimming / DMX512 |
| Maximum Power | Up to 80W/m² |
| Delivery Time | Approx. 15 days after design confirmation |
| Other Service | Custom dimensions, shapes and lighting configurations |
Product Details
| Voltage | 12V DC / 24V DC |
|---|---|
| Material | PMMA Acrylic |
| Panel Thickness | 15mm / 25mm |
| Shape and Dimensions | Custom-made according to project drawings |
| Light Options | Custom CCT / Tunable White / RGB / RGBW |
| Control | On/Off / Dimming / DMX512 |
| Maximum Power | Up to 80W/m² |
| MOQ | No minimum order quantity |
| Production Lead Time | Approx. 15 days after design confirmation |
Product Description
A Custom LED Backlight Panel with No Visible Dark Border
YIZEE manufactures each custom LED backlight panel from rigid PMMA acrylic to the confirmed project dimensions and shape. This light guide panel distributes LED light across a flat luminous face for custom display backlighting. It is a complete illuminated panel, rather than a bare acrylic light guide plate or a flexible LED sheet.
Conventional light guide panels commonly leave a 10–20 mm non-illuminated border around the perimeter. YIZEE’s edge-to-edge design provides a continuous visible luminous surface without the conventional dark edge.

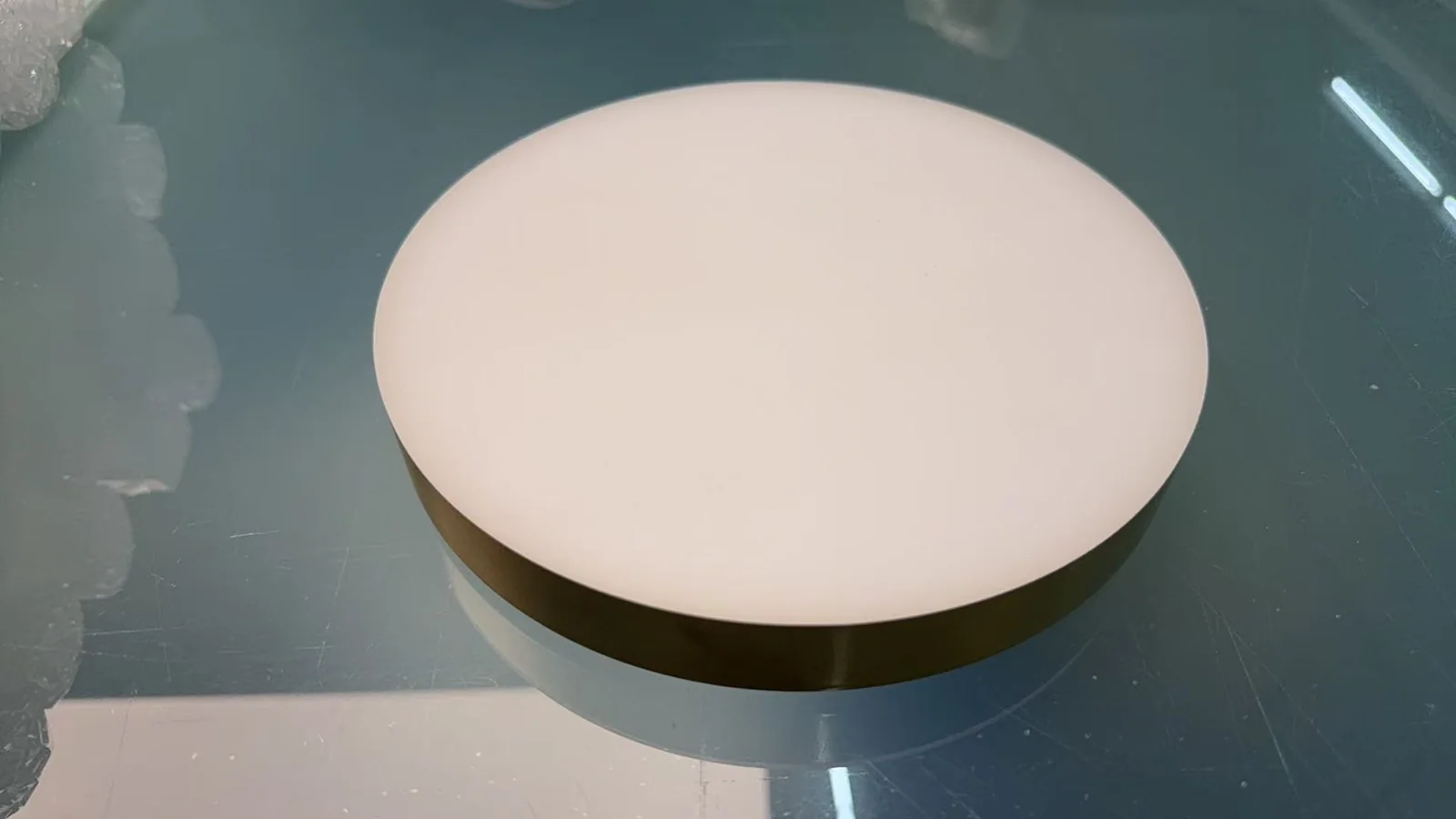

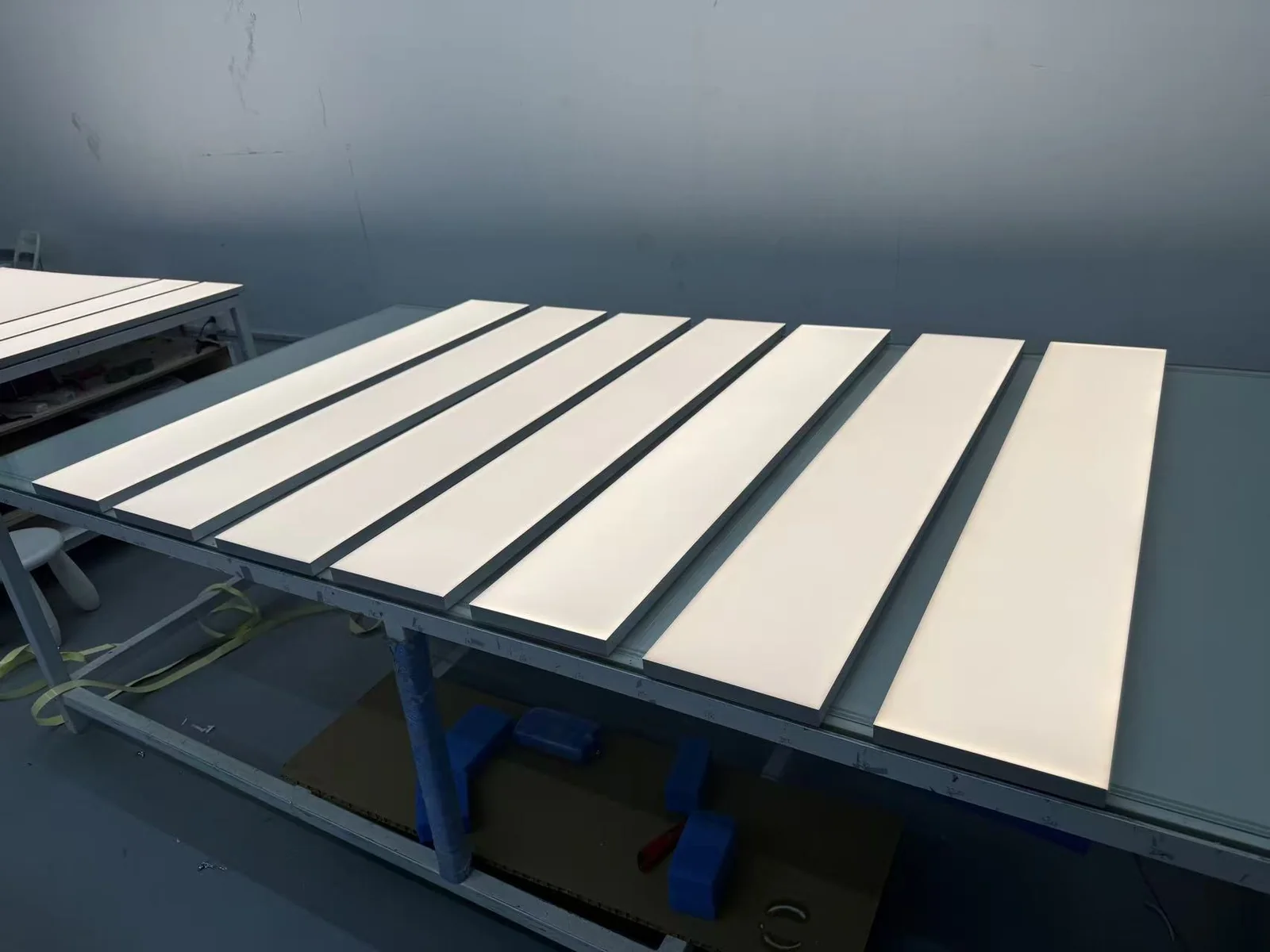

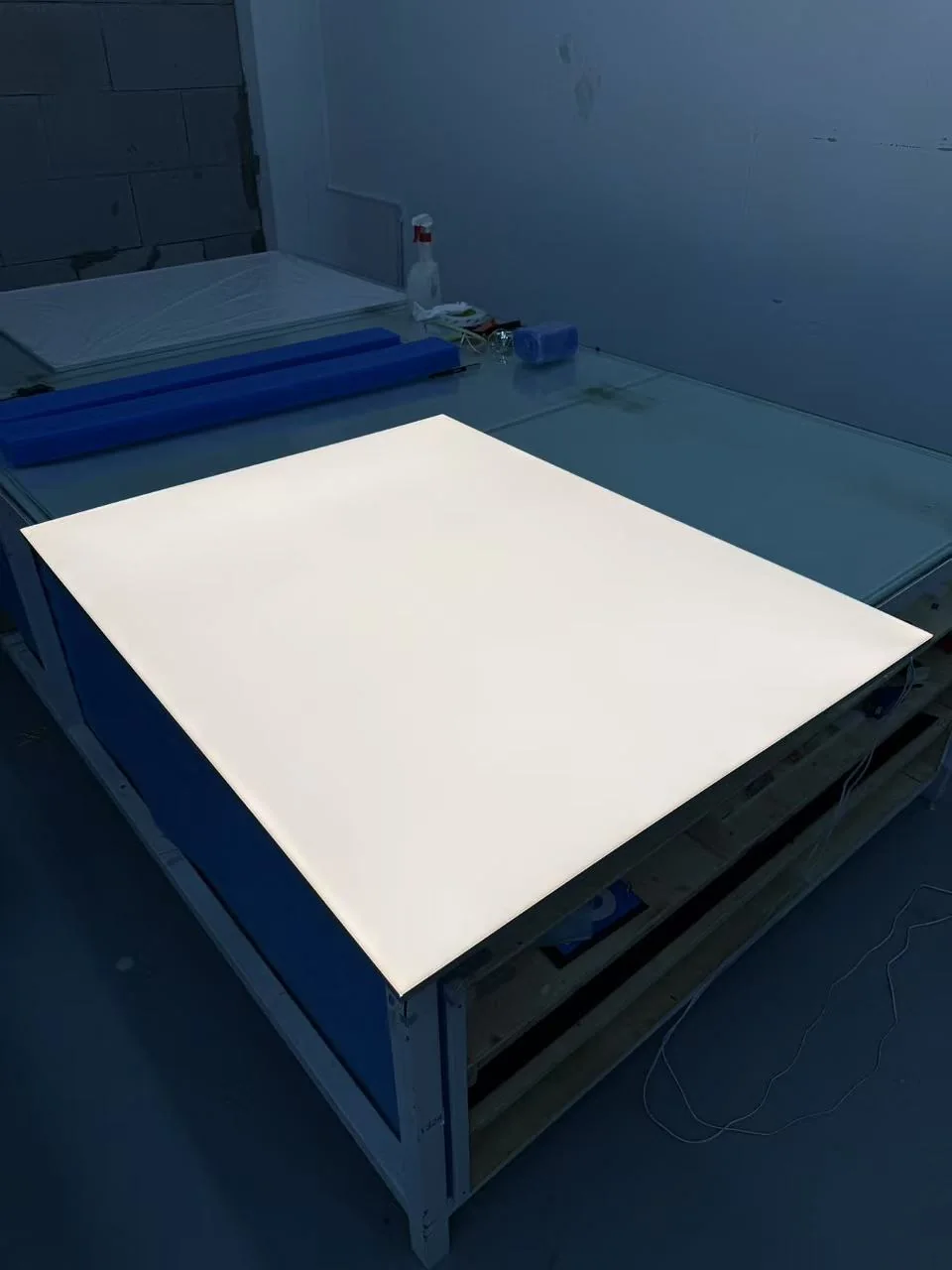

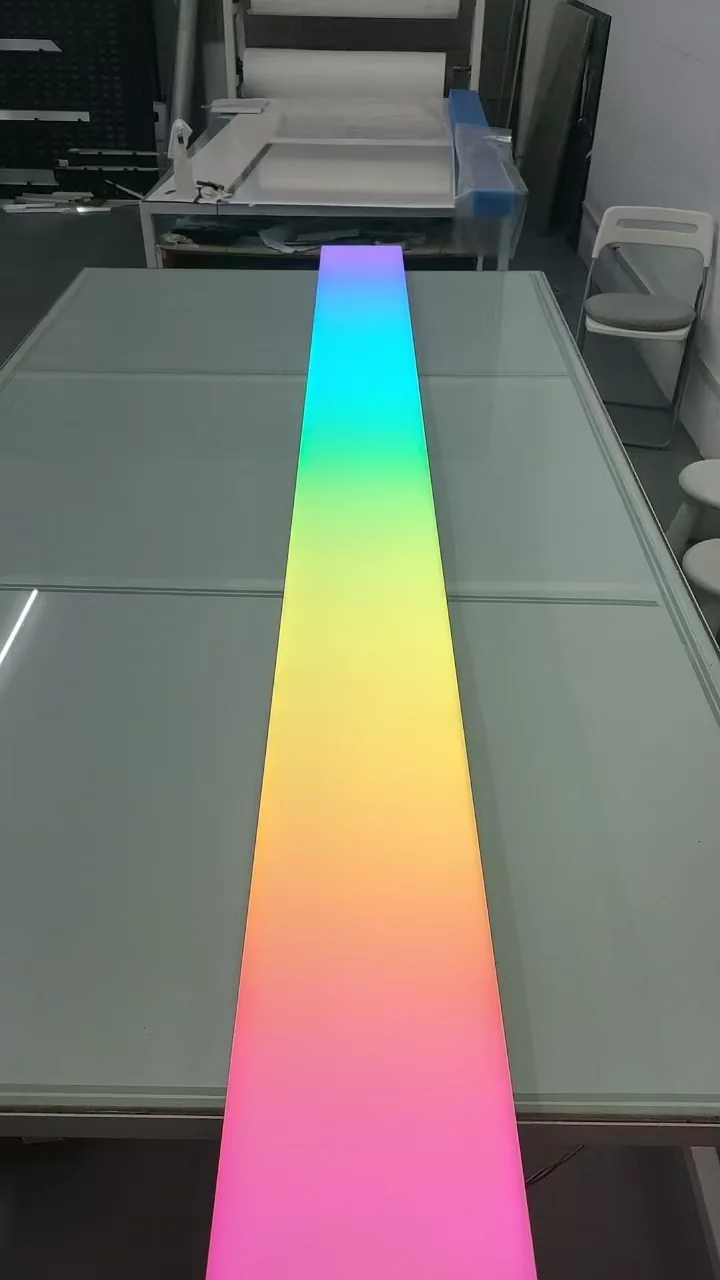

Round, square, rectangular and long linear formats can be developed for retail displays, display cabinets, branded store fixtures, backlit signs and furniture. Fixed white, tunable white, RGB and RGBW configurations support different display concepts, with dimming or DMX512 options matched to the confirmed design.
Available configurations:
- 12V DC or 24V DC input.
- 15mm or 25mm panel thickness.
- Custom color temperature, tunable white, RGB or RGBW.
- Dimming and DMX512 control options.
- Power density up to 80W per square metre.
- No minimum order quantity for samples and one-off projects.

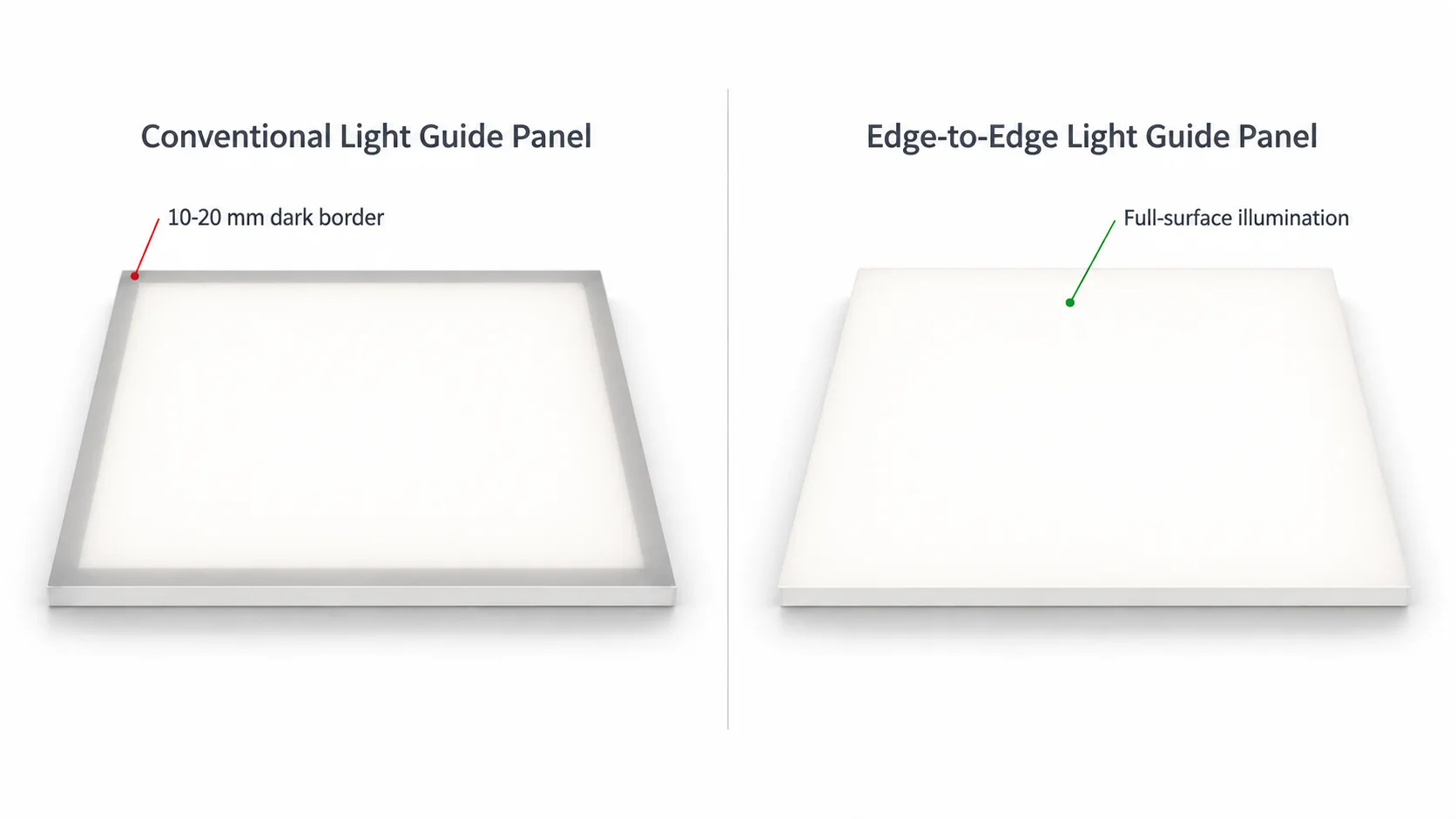

Edge-to-Edge vs Conventional Light Guide Panels
Both designs use a PMMA acrylic light guide plate to distribute LED light across a thin surface. The main visible difference is the perimeter: a conventional panel normally leaves a 10-20 mm non-illuminated border, while the YIZEE edge-to-edge design carries the visible luminous surface to the panel edge.
| Feature | Conventional Panel | Edge-to-Edge Panel |
|---|---|---|
| Visible perimeter | Typically has a 10-20 mm dark border | Continuous visible illumination to the edge |
| Best use | Border is hidden behind a bezel or frame | Visible-edge or maximum-illuminated-area designs |
| Adjacent panels | Panel divisions are more visible | Better visual continuity across modules |
| Project approach | Practical for standard framed applications | Made to the confirmed drawing and lighting requirement |
Custom Display Backlighting for Retail Projects
Specify the light panel around the display, not the other way round. Dimensions, shape, visible illuminated area and lighting controls can be reviewed against your fixture drawing before production.
LED Light Panels for Retail Displays
Use a made-to-order illuminated surface behind display graphics, product showcases or branded display features. Fixed-white, tunable-white, RGB and RGBW options let the panel configuration follow the display concept. Where graphics or translucent finishes cover the panel, check their appearance with a representative sample.

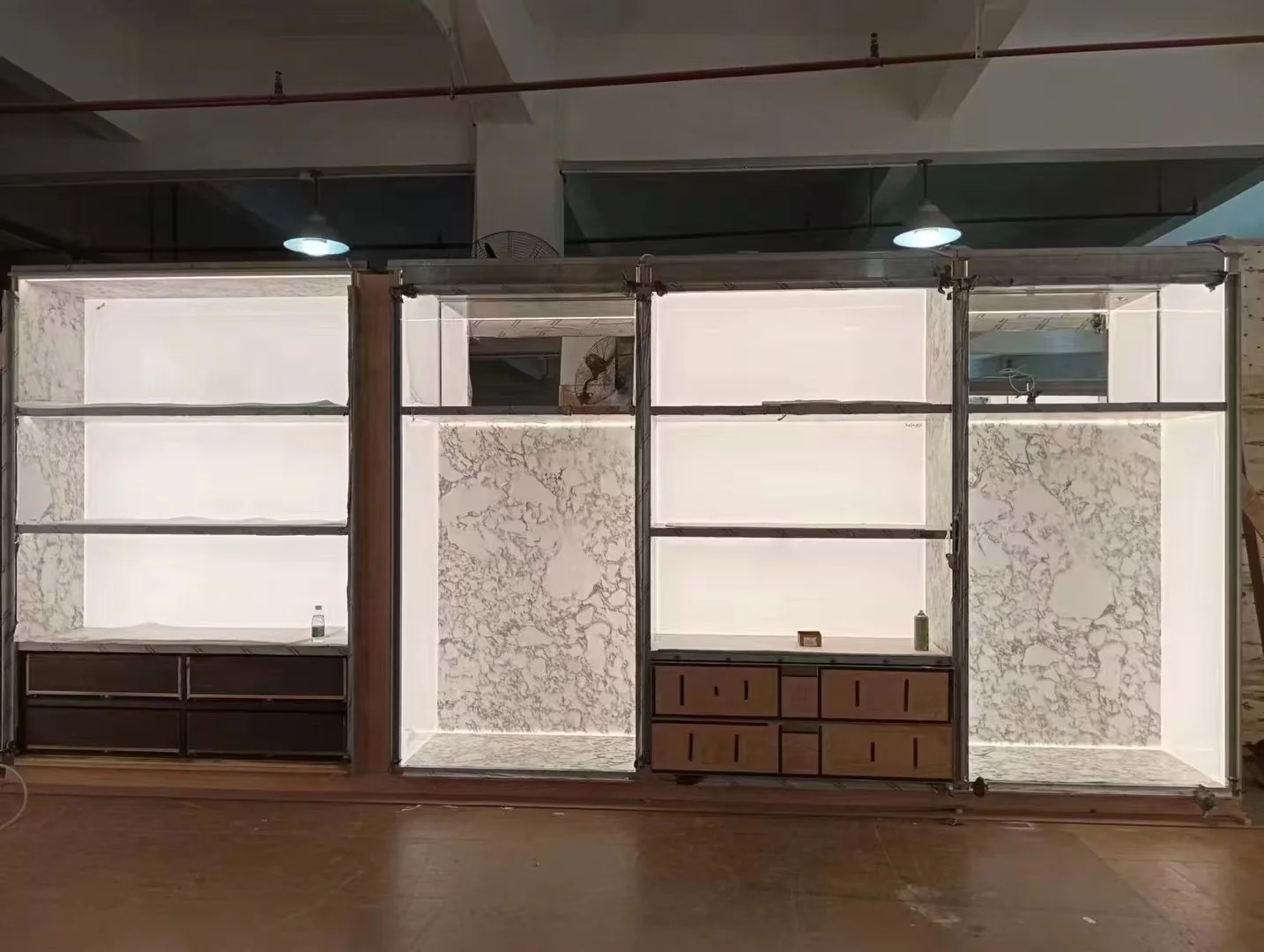

LED Backlight Panels for Store Fixtures

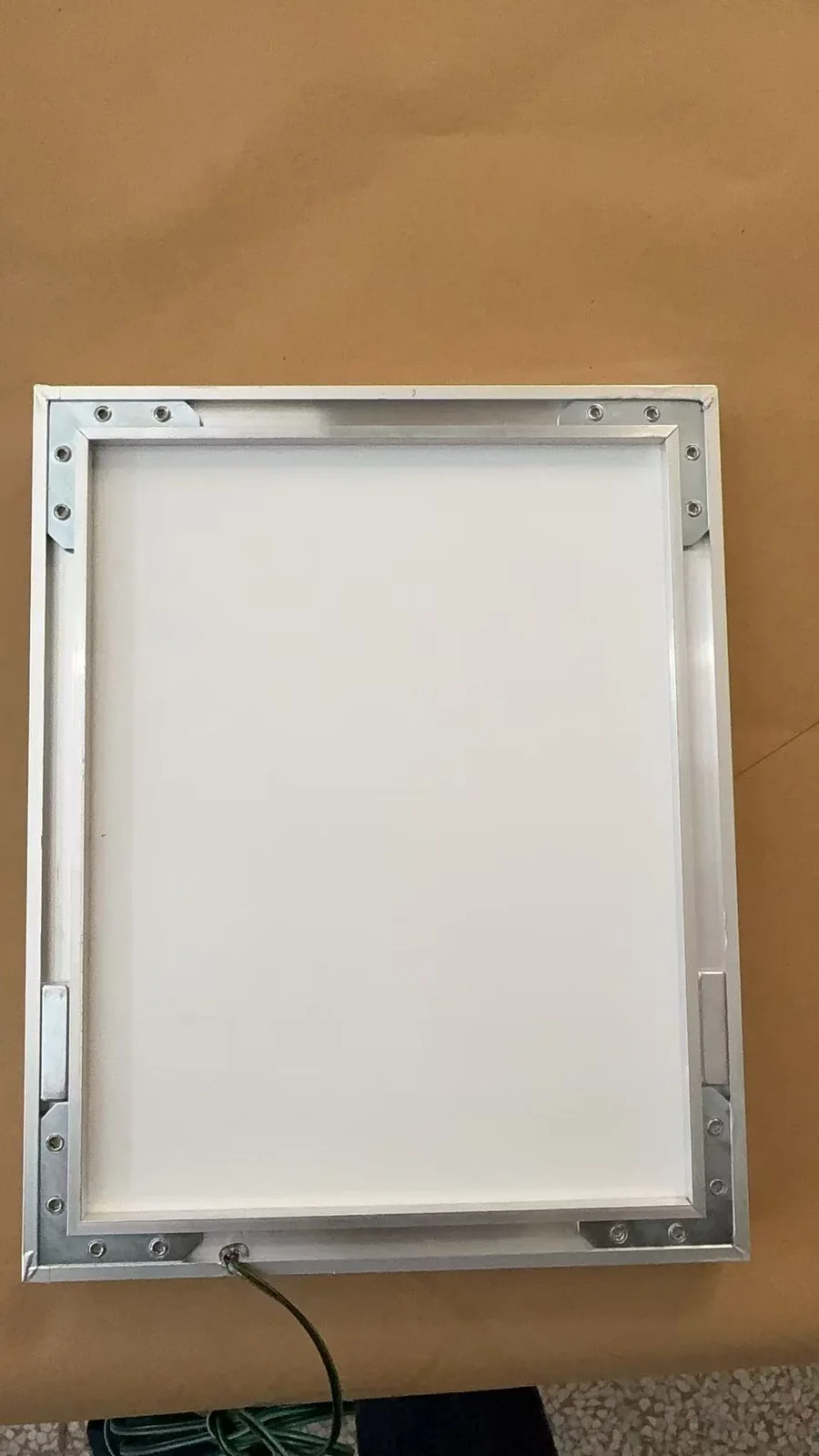

For display-cabinet manufacturers, shopfitters and retail fixture builders, the rigid acrylic panel can be sized to the available back panel or fixture opening. Choose a 15mm or 25mm version and provide the mounting clearance, cable-exit position and connection requirements for review. Edge-to-edge illumination is particularly useful when a conventional unlit border would remain visible.
OEM LED Light Panels for Display Manufacturers
Develop an initial sample for a custom fixture or a chain-store display program, then confirm the drawing and lighting configuration before arranging production quantities. There is no minimum order quantity. For repeat projects, include quantities by panel size, the number of fixture types and the planned delivery batches in your quotation request.
Project information: Send the finished panel dimensions or drawing, quantity, visible illuminated area, installation space, 12V or 24V input, light-color option, dimming or DMX512 requirement and delivery destination.

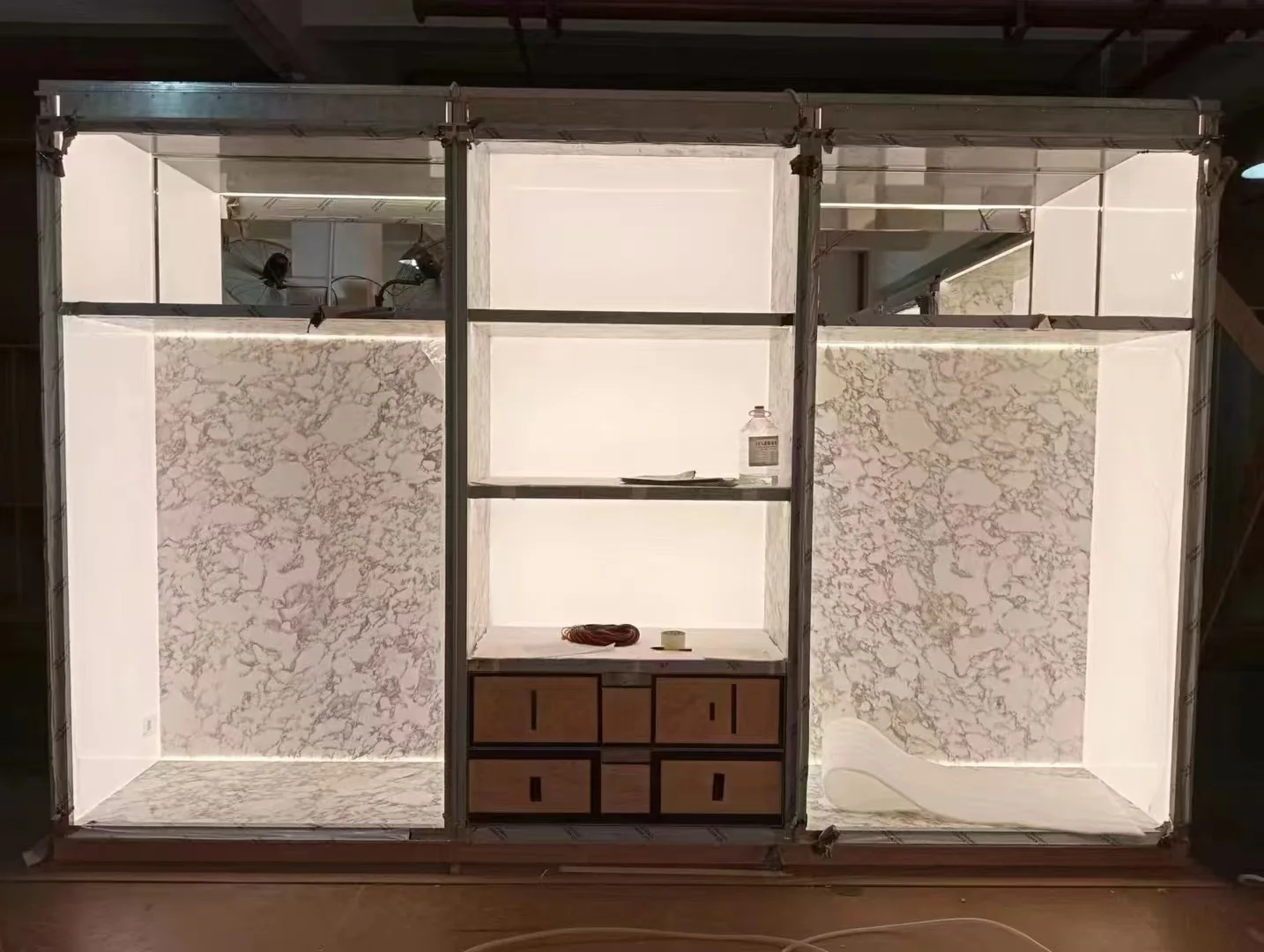

Product Images
Frequently Asked Questions
Our Services
- Engineering review for dimensions, shapes, output and installation details.
- Custom white light, tunable white, RGB and RGBW configurations.
- Dimming and DMX512 control matching for project applications.
- One-to-one communication for samples, quotations and production drawings.
