14 Keys Mini LED Strip Controller Rf Wireless Remote Led Controller For LED
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 40576423 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Input Voltage | DC5-24V |
| Maximum Number of Control Pixels | 2048 |
| Suppot IC | WS2811, WS2812B |
| Working temperature | -20°~60° |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Input Voltage | DC5-24V |
|---|---|
| Maximum Number of Control Pixels | 2048 |
| Suppot IC | WS2811, WS2812B |
| Working temperature | -20°~60° |
Product Description
14key Mini RF Wireless Remote Controller For Dream Color LED Strip
Product Description
-
1. RF/IR Remote control,long distance,mini size,wire connection is simple and very easy to use;
-
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
-
3. With 300 kinds of patterns,which are vivid and beautiful;
-
4. Each controller can control up to 2048 pixels;
-
5. With user setting saving functionality;
-
6. Brightness adjustable.
-
7. Preventing reverse connection of power supply.
-
8. Applicable Lights:for LED Strip WS2811 WS2812B SK6812 UCS1903 SM16703
Product Parameters

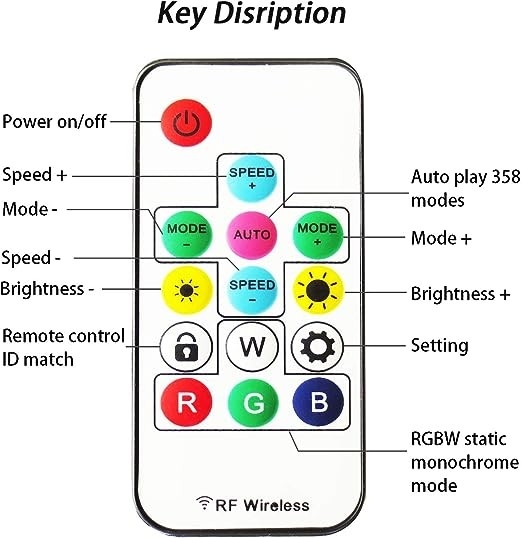

| Testing | Continuously press the AUTO button 5 times until LED is off, and release the AUTO button to into the mode of switching in red, green, blue, yellow, purple, cyan and white, which can test your LED. |
| Matching | Continuously pressing the MATCH button 5 times until LED lights flash in white quickly to match the Remote control with the receiving controller. Pressing the MATCH button 5 times till the LED flash in white slowly to unmatch. |
| Reorder RGB | Differing from kinds of LED, The R G B keys may don’t perfectly match your LED, Reorder them if needed. Continuously press the SETTING button 5 times until LED lights flash in white once and then turn all white, pressing the R button until LED is red, press the G button until LED is green, press the B button till LED is blue, then press the SETTING button once to confirm your setting. |
| Adjust Num of Pixels | The factory default setting of the number of controlled pixels is 600. Continuously press the SETTING button 5 times until LED lights flash once and turn all white, pressing MODE+ to add pixels, pressing MODE- to decrease pixels, (each pressing add or decrease 60 pixels) then press the SETTING button to confirm your setting; Can be regulated to up to 2048 pixels, the minimum number is 300 pixels. |
| Catching | When in the AUTO mode, press the SETTING button once, and then press MATCH button once to catch the Current pattern to stay and operate circularly |
Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
