xProduct Details
| Input Voltage | DC5-24V | Maximum Number Of Control Pixels | 2048 |
|---|---|---|---|
| Suppot IC | WS2811, WS2812B | Working Temperature | -20°~60° |
| Remote Size | L85*W40*H6mm | Gross Weight | 36g |
| Controller Size | L70*W12*H3mm | Remote Control Distance | 20m |
| Highlight | 14 Keys LED Strip Controller,Mini LED Strip Controller,24V rf wireless remote led controller |
||
Product Description

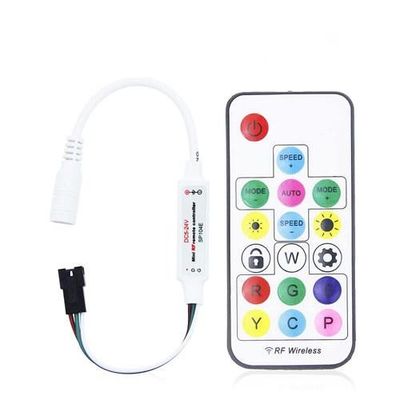

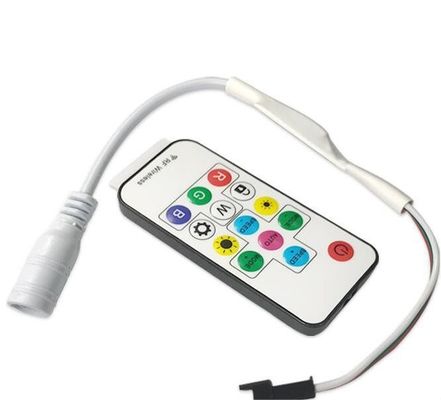

14key Mini RF Wireless Remote Controller For Dream Color LED Strip
Product Description
-
1. RF/IR Remote control,long distance,mini size,wire connection is simple and very easy to use;
-
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
-
3. With 300 kinds of patterns,which are vivid and beautiful;
-
4. Each controller can control up to 2048 pixels;
-
5. With user setting saving functionality;
-
6. Brightness adjustable.
-
7. Preventing reverse connection of power supply.
-
8. Applicable Lights:for LED Strip WS2811 WS2812B SK6812 UCS1903 SM16703
Product Parameters
| Testing | Continuously press the AUTO button 5 times until LED is off, and release the AUTO button to into the mode of switching in red, green, blue, yellow, purple, cyan and white, which can test your LED. |
| Matching | Continuously pressing the MATCH button 5 times until LED lights flash in white quickly to match the Remote control with the receiving controller. Pressing the MATCH button 5 times till the LED flash in white slowly to unmatch. |
| Reorder RGB | Differing from kinds of LED, The R G B keys may don’t perfectly match your LED, Reorder them if needed. Continuously press the SETTING button 5 times until LED lights flash in white once and then turn all white, pressing the R button until LED is red, press the G button until LED is green, press the B button till LED is blue, then press the SETTING button once to confirm your setting. |
| Adjust Num of Pixels | The factory default setting of the number of controlled pixels is 600. Continuously press the SETTING button 5 times until LED lights flash once and turn all white, pressing MODE+ to add pixels, pressing MODE- to decrease pixels, (each pressing add or decrease 60 pixels) then press the SETTING button to confirm your setting; Can be regulated to up to 2048 pixels, the minimum number is 300 pixels. |
| Catching | When in the AUTO mode, press the SETTING button once, and then press MATCH button once to catch the Current pattern to stay and operate circularly |
Product Images
Applications
FAQ
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100 sets
Q3: What's your delivery time?
A3: Samples can be finished within 10 days, bulk order is about 30-50 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
