8mm RGB LED Strip SMD3838 120 LEDs/M 17.3W 5m Colour Changing LED Tape
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37740479 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC24V |
| Power | 12.2W/Meter |
| LED Qty/m | 120Leds/M |
| PCB Width | 10mm |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC24V |
|---|---|
| Power | 12.2W/Meter |
| LED Qty/m | 120Leds/M |
| PCB Width | 10mm |
Product Description
8mm RGB LED Strip SMD3838 120 LEDs/M 17.3W 5m Colour Changing LED Tape
Q: What size is 3838 SMD?
A: 3838 SMD LED size: 3.8×3.8×1.2mm.
Q: How do you control RGB light strips?
A:To control a multi-color LED strip, you just need to add a new transistor for each new color wire. The above code cycles through different colors at random. It demonstrates how varying the amount of power applied to each RGB wire, changes the color being displayed.
Product Description
1. SMD 3838,RGB led strip
2. High density RGB colorful strip
3. Different IP protection available, no problem for indoor and outdoor
4. Widely adaptable to all types of controllers
5. Working time >36000H
6. High quality FPC, high thermal 3M adhesive
Product Parameter
| Model No | S1120RGB-24V-8mm |
| PCB Width | 8 mm |
| LED Qty/m | 120 Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 12.2W/Meter |
| Luminous(lm/m) | 534max |
| LED Chip Brand | Sanan |
| LED BINs | / |
| CRI(RA>) | / |
| Color Tempertature | / |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*8*1.5mm |
| Package(m/roll) | 5M/roll (1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |

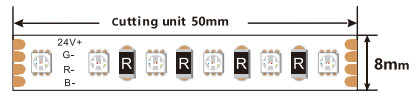

| Cutting Unit | 6 LED/50mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 3 Years |
Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
