20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37614591 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | 24V |
| Power | 9.6W/Meter |
| IP Rating | IP20/IP55/IP65/IP67 |
| Cutting unit(mm) | 6 LED/50mm |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | 24V |
|---|---|
| Power | 9.6W/Meter |
| IP Rating | IP20/IP55/IP65/IP67 |
| Cutting unit(mm) | 6 LED/50mm |
Product Description
20m Ultra Long Constant Current Flexible Led Strip Light Tape
Q1: Do LED strips need constant current or constant voltage?
A1 :Despite the lower efficiency being a disadvantage, constant voltage drivers are less costly than constant current drivers, so they are often used in many applications, like LED strip lights, because the manufacturer would not typically spring for more expensive drivers in these cases.
Product Description
1. SMD 2835,one bin only,SDCM<3
2. Single-ended power supply for 20 meters, Consistent luminance
3. High quality PFC, high thermal 3M adhesive
4. With life span over 60000H>Suitable for various dimming controllers
Product Parameter
| Model No | CS8120-24V-12mm |
| PCB Width | 12mm |
| LED Qty/m | 120Leds/M |
| PCB materials | 3Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 9.6W/Meter |

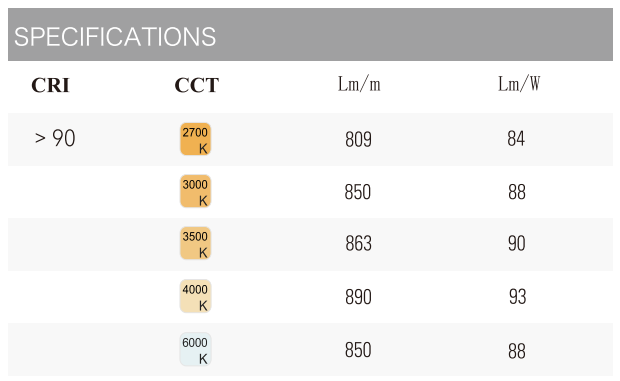

| Luminous(lm/m) | 680-890 |
| LED Chip Brand | Sanan |
| LED BINs | 3-Step, one BIN only for each order |
| CRI(RA>) | Ra >90 |
| Color Tempertature | 2700/3000/3500/4000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 20000*12*1.6mm |
| Package(m/roll) | 20M/roll (Customized length available) |

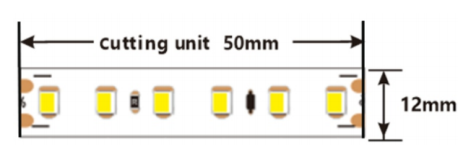

| Cutting Unit | 6 LED/50mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | NO |
| Certificate | UL,CE |
| Warranty | 3 Years |
Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
x
![Product Image]()
The 20m Ultra Long Constant Current Flexible Led Strip Light Tape 24V 12mm Led Flexible Ribbon is a premium LED strip designed for professional lighting applications. Manufactured by YIZEE Lighting with advanced SMD technology, this product delivers exceptional performance for commercial and residential projects.
Key Features & Specifications
- CE, RoHS, and UL safety certified for global markets
- 24V constant voltage operation for stable, flicker-free output
- 12mm PCB width for easy installation in narrow spaces
- Custom cutting lengths available per project requirements
- 3M adhesive backing for quick and secure mounting
- 5-year manufacturer warranty with dedicated after-sales support
Recommended Applications
- Commercial and retail space illumination
- Hospitality and hotel room lighting
- Architectural accent and cove lighting
- Residential interior design projects
- Office and workspace lighting solutions
Why Choose YIZEE Lighting?
As a leading LED strip manufacturer based in Jiangsu, China, YIZEE Lighting offers:
- Factory Direct Pricing — No middlemen, competitive wholesale rates for distributors and project contractors
- OEM/ODM Service — Custom specifications including length, color temperature, IP rating, and packaging
- Free Samples — Evaluate product quality before committing to bulk orders
- Fast Lead Time — Standard products ship within 3-7 days; custom orders within 15 days
- Global Shipping — Exported to 50+ countries including USA, EU, Middle East, and Southeast Asia
