High Quality 12mm DC24V 288LEDs/m 5-color RGB+2700K-6000K LED Strip Light
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37377260 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC24V |
| Actual Power(w/m) | 19.2W/Meter |
| PCB Width | 12mm |
| Led Quantity | 228Leds/M |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC24V |
|---|---|
| Actual Power(w/m) | 19.2W/Meter |
| PCB Width | 12mm |
| Led Quantity | 228Leds/M |
Product Description
RGB+2700K-6000K 12mm 24v 288 LEDs RGB LED Strip Light
Product Description
1. 288LEDs/m,5-color LED strip with higher-density light beads
2. Perfect for the curvy, space-sensitive backlighting requiring the thinnest of lighting solutions.
3. High quality FPC, high thermal 3M adhesive
4. With life span over 60000H
5. Widely adaptable to all types of controllers
Product Parameter
| Model No | S9288RGBCW-24V-12mm |
| PCB Width | 12mm |
| LED Qty/m | 228Leds/M |
| PCB materials | 3Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 19.2W/Meter |
| Luminous(lm/m) | 660max |
| LED Chip Brand | Sanan |
| LED BINs | 5-Step, one BIN only for each order |
| CRI(RA>) | Ra >80(Ra >90/Ra >95 optional) |
| Color Tempertature | RGB+3000-6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*12*1.5mm |
| Package(m/roll) | 5M/roll (1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |

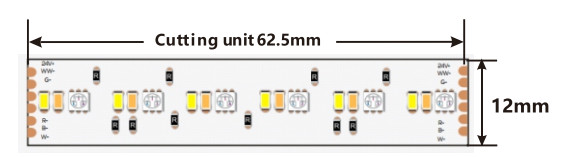

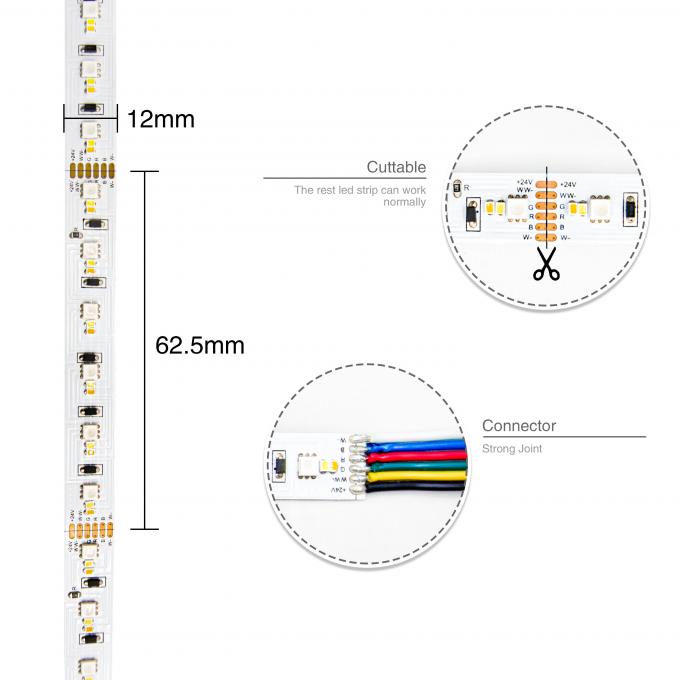

| Cutting Unit | 18 LED/62.5mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | LM/M | LM/W |
| ＞90 | 2700K | 727 | 38 |
| 3000K | 764 | 40 | |
| 3500K | 776 | 40 | |
| 4000K | 800 | 42 | |
| 6000K | 764 | 40 |
Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
x
![Product Image]()
Introducing the High Quality 12mm DC24V 288LEDs/m 5-color RGB+2700K-6000K LED Strip Light — a high-quality RGB LED strip from YIZEE Lighting's professional product line. Engineered for reliability and efficiency at 24V operating voltage, this product is ideal for architects, designers, and lighting contractors worldwide.
Key Features & Specifications
- CE, RoHS, and UL safety certified for global markets
- 24V constant voltage operation for stable, flicker-free output
- 288 LEDs/m LED density for uniform illumination without visible dots
- 12mm PCB width for easy installation in narrow spaces
- Custom cutting lengths available per project requirements
- 3M adhesive backing for quick and secure mounting
- 5-year manufacturer warranty with dedicated after-sales support
Recommended Applications
- Entertainment venue and nightclub lighting
- Architectural facade color washing
- Stage and event dynamic lighting
- Gaming room and home theater ambiance
- Restaurant and bar mood lighting
Why Choose YIZEE Lighting?
As a leading RGB LED strip manufacturer based in Jiangsu, China, YIZEE Lighting offers:
- Factory Direct Pricing — No middlemen, competitive wholesale rates for distributors and project contractors
- OEM/ODM Service — Custom specifications including length, color temperature, IP rating, and packaging
- Free Samples — Evaluate product quality before committing to bulk orders
- Fast Lead Time — Standard products ship within 3-7 days; custom orders within 15 days
- Global Shipping — Exported to 50+ countries including USA, EU, Middle East, and Southeast Asia
