10mm RGB LED Strip 168LEDs/M 24V 5m 3838 Colour Changing LED Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37377246 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC24V |
| Power | 17.3W/Meter |
| PCB Width | 10mm |
| LED Qty/m | 168Leds/M |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC24V |
|---|---|
| Power | 17.3W/Meter |
| PCB Width | 10mm |
| LED Qty/m | 168Leds/M |
Product Description
10mm RGB LED Strip 168LEDs/M 24V 5m 3838 Colour Changing LED Strip
Q: What is a SMD RGB?
A:SMD RGB LED technology allows the colour of light to be changed by using three diodes: red, blue and green. In order to vary the colour of the light, these diodes are mixed according to precise intensities
Q: Can RGB strip lights be cut?

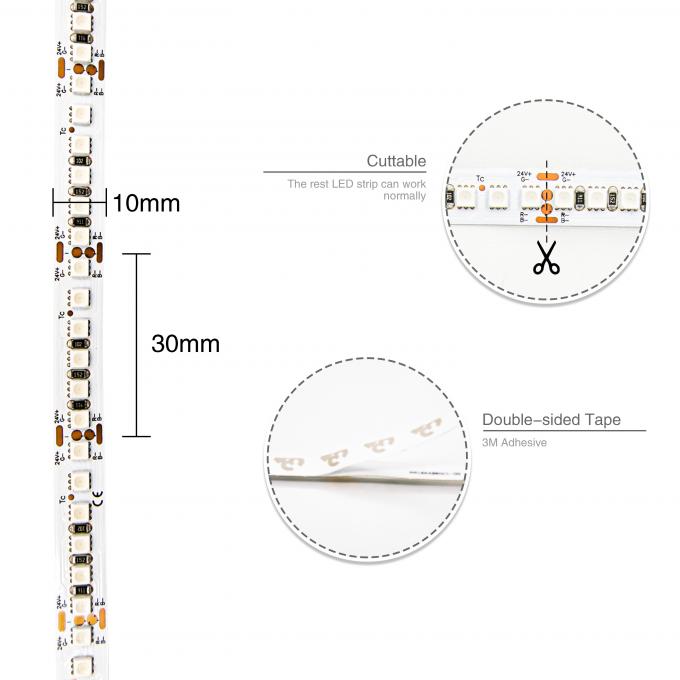

A: LED Strip Lights are such a versatile product due to the fact that they can easily be cut on the given cut lines and connected at any point between the copper dots on the LED Strip Lights, cut lengths vary between products.
Product Description
1. SMD 3838,RGB led strip
2. High density RGB colorful strip
3. Different IP protection available, no problem for indoor and outdoor
4. Widely adaptable to all types of controllers
5. Working time >36000H
6. High quality FPC, high thermal 3M adhesive
Product Parameter
| Model No | S1168RGB-24-10mm |
| PCB Width | 10mm |
| LED Qty/m | 168Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 17.3W/Meter |
| Luminous(lm/m) | 534max |
| LED Chip Brand | Sanan |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*10*1.5mm |
| Package(m/roll) | 5M/roll ( Customized length available ) |

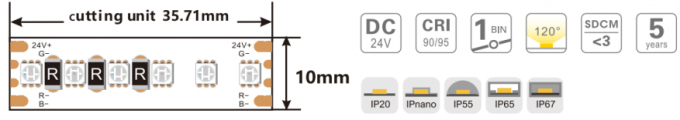

| Cutting Unit | 6 LED/35.71mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 3 Years |
| CRI | CCT | LM/M | LM/W |
| RGB | / | 480 | 29 |
| R | 620nm | / | / |
| G | 520nm | / | / |
| B | 456nm | / | / |
Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
