SMD 2835 CCT Tunable Flexible LED Strip 8mm 24V Dual White LED Strip Lights
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37309021 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC24V |
| Power | 14.4W/Meter |
| PCB Width(mm) | 8mm |
| Color Temperture | 1900K-6000K |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC24V |
|---|---|
| Power | 14.4W/Meter |
| PCB Width(mm) | 8mm |
| Color Temperture | 1900K-6000K |
Product Description
SMD 2835 CCT Tunable Flexible LED Strip 8mm 24V Dual White LED Strip Lights
Q1: What is the temperature adjustable LED strip?
A1: The controller is what is used to adjust the temperature of the LED chips. A good quality LED strip light will have a range of temperatures of between 2,700 Kelvin to 6,500 Kelvin. When the controller is set between 2,000K to 3,500K, there will be warm light.
Q2: How do you control LED color temperature?
A2: Generally there is a dip switch on the fixture that when switched will change the color temperature from 2700K or 3000K all the way up to 5000K. This technology is controlled within by new, sophisticated LED drivers that allow for independent control of the color temperature as well as the light output.
Product Description
1. Toning and CCT adjustable, widely adaptive to all kinds of controllers.
2. Self-encapsulated design, offers 1900K~6000K white lights, CRI 90, Life span exceeds 36000H
Product Parameter
| Model No | S8120CCT-24V-8mm |
| PCB Width | 8mm |
| LED Qty/m | 120Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | DC24V |
| Power(W) | 14.4W/Meter |
| Luminous(lm/m) | 630-1490 |
| LED Chip Brand | Sanan |
| LED BINs | 5-Step, one BIN only for each order |
| CRI(RA>) | Ra >80(Ra >90/Ra >95 optional) |
| Color Tempertature | 1900K-6000K |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*8*1.5mm |
| Package(m/roll) | 5M/roll ( Customized length available) |

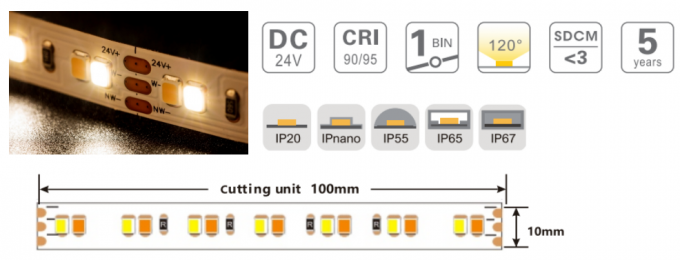

| Cutting Unit | 12 LED/100mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | YES |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | LM/M | LM/W |
| ＞90 | 2700K-6000K | 1440 | 90 |
| 2700K | 705 | 85 | |
| 6000K | 748 | 92 |

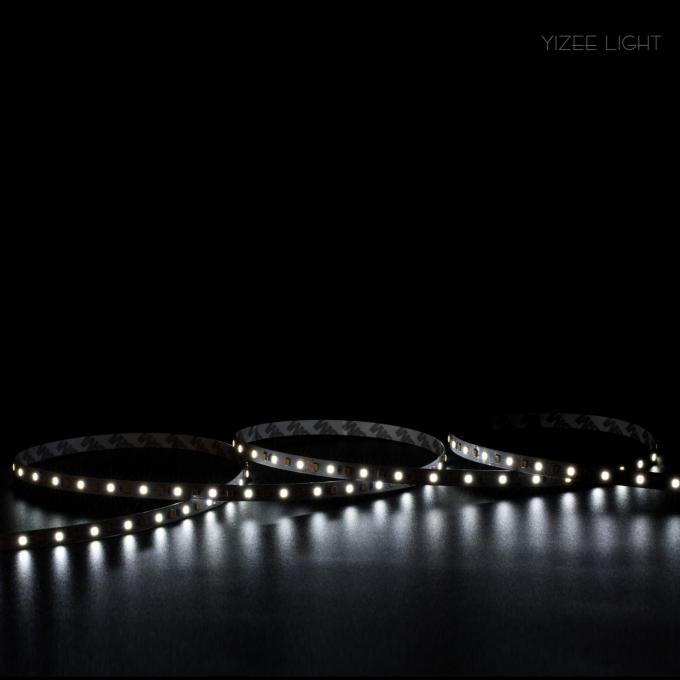

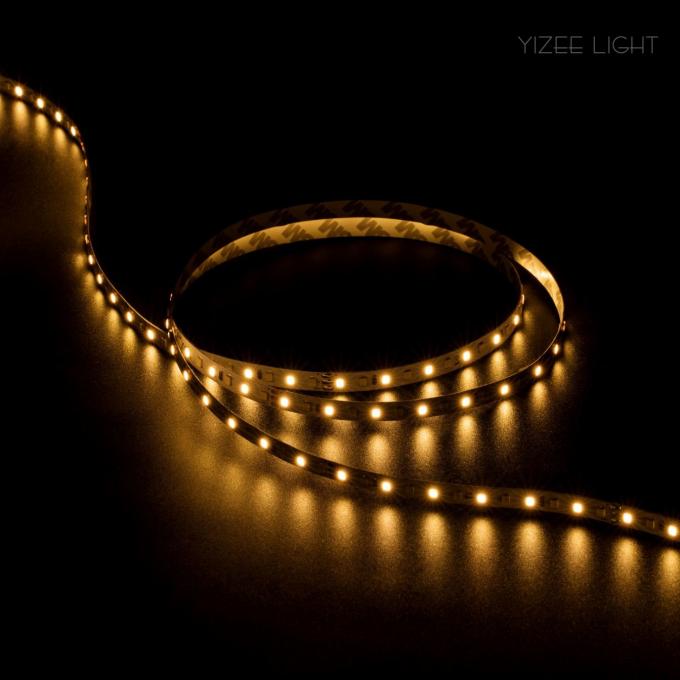

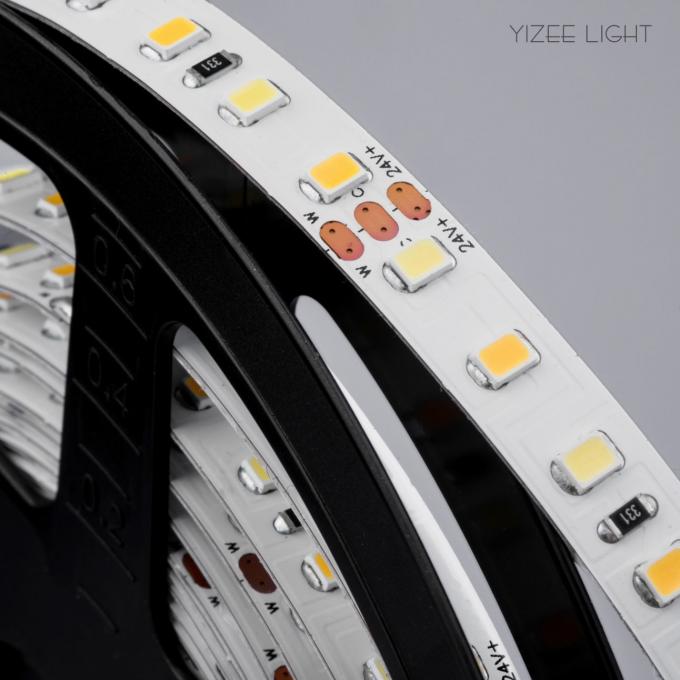

Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
