Short-Unit Flexible LED Strip 1 LEDs Per Cut 8mm 24V SMD2835 Led Cuttable Strip Lights
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 37304212 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | 24V |
| Power | 9.6W/Meter |
| IP Rating | IP20/IP65/IP67 |
| Cutting unit(mm) | 1LED/8.33mm |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | 24V |
|---|---|
| Power | 9.6W/Meter |
| IP Rating | IP20/IP65/IP67 |
| Cutting unit(mm) | 1LED/8.33mm |
Product Description
Short-Unit Flexible LED Strip 1 LEDs Per Cut 8mm 24V SMD2835 Led Cuttable Strip Lights
Q1: Do cut LED strips still work?
A1: Providing that you cut along the marked cut lines only, LED strips — including certain Hue lightstrips — will work after cutting. Many people experience issues with their light strips if they cut outside of these lines. The cut lines are also the safest place to cut LED strips, as the circuits here are closed.
Product Description
(1) Small cut unit, 1 LEDs 1 cut unit, easy customize for project requirment.
(2) Long life span, working time >50000H
(3) High quality LED, 5 years warranty
(4) Different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
Product Parameter
| Model No | OS8120-24V-8mm |
| PCB Width | 8 mm |
| LED Qty/m | 120Leds/M |
| PCB materials | 3Oz Double-sided coated pure copper |
| Voltage(V) | 24V DC |
| Power(W) | 9.6W/Meter |
| Luminous(lm/m) | max 860 |
| LED Chip Brand | Sanan |
| LED BINs | 3-Step, one BIN only for each order |
| CRI(RA>) | >80(CRI >90 / CRI >95 optional) |
| Color Tempertature | 2700/3000/3500/4000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*8*1.5mm |
| Package(m/roll) | 5M/rol (Customized length available) |

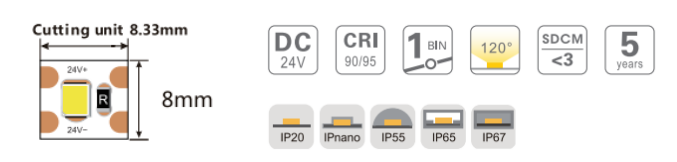

| Cutting Unit | 1LED/8.33mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | Lm/m | Lm/W | Energy Efficiency Class |
| ＞90 | 2700k | 782 | 81 | G |
| 3000k | 821 | 86 | G | |
| 3500k | 834 | 87 | G | |
| 4000k | 860 | 90 | G | |
| 6000k | 821 | 86 | G |

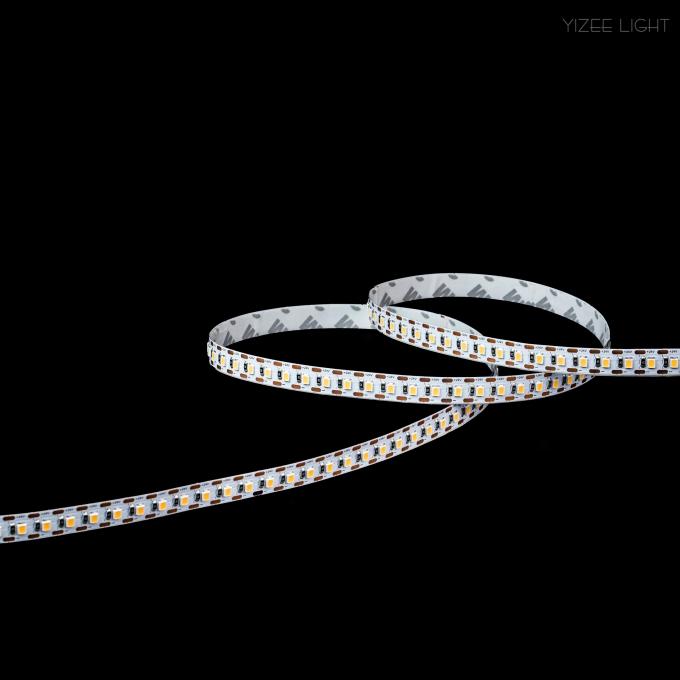

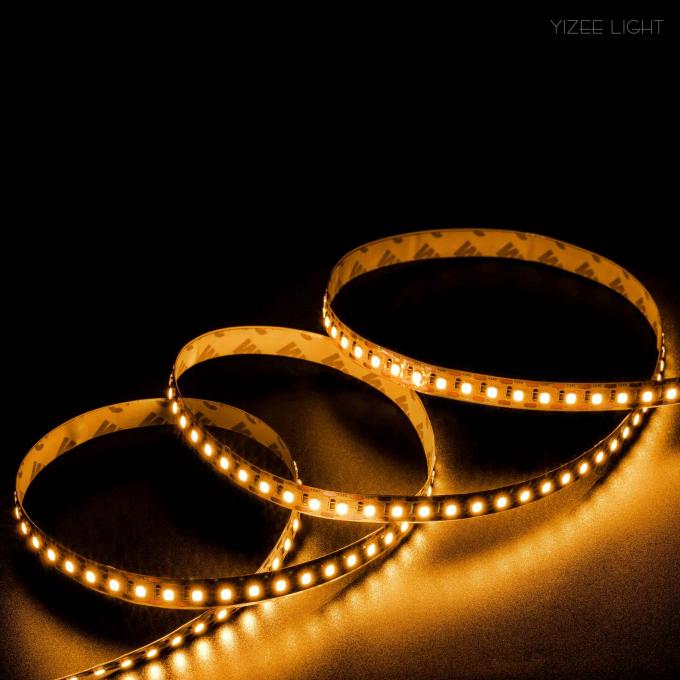

Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
