48V Led Flexible Ribbon 20m Long Running White Flexible Led Strip Lights Waterproof
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 36857431 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC48V |
| Power | 9.6W/Meter |
| PCB Width(mm) | 8mm / 10mm |
| IP Rating | IP20/IP55/IP65/IP67 |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC48V |
|---|---|
| Power | 9.6W/Meter |
| PCB Width(mm) | 8mm / 10mm |
| IP Rating | IP20/IP55/IP65/IP67 |
Product Description
8mm 10mm Width Flexible LED Strip 9.6W 48V 120LEDs 2835 LED Tape
Q1: How long is a 48V Flexible LED strip?
A1: 48V ultra-long LED strip light can be up to 60 meters long without voltage drop for single power input. According to Ohm's law, power is equal to voltage times current. In the case of certain power, the higher the voltage, the lower the current.
Product Description
1. SMD 2835,one bin only,SDCM<3
2. Suitable for commercial stylish lighting in conjunction with BSD 48V series power supply
3. High quality PFC, high thermal 3M adhesive
4. With life span over 60000H
5. Suitable for various dimming controllers
Product Parameter
| Model No | S8120-48V-8mm/10mm |
| PCB Width | 8 mm / 10mm |
| LED Qty/m | 120Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | 48V DC |
| Power(W) | 9.6 W/Meter |
| Luminous(lm/m) | max 860 |
| LED Chip Brand | Sanan |
| LED BINs | 3-Step, one BIN only for each order |
| CRI(RA>) | CRI >90 (CRI>80,CRI >95 optional) |
| Color Tempertature | 2700/3000/4000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 120 |
| Product Size(mm) | 5000*8*1.5mm ; 5000*10*1.5mm |
| Package(m/roll) | 20M/roll (Customized length available) |

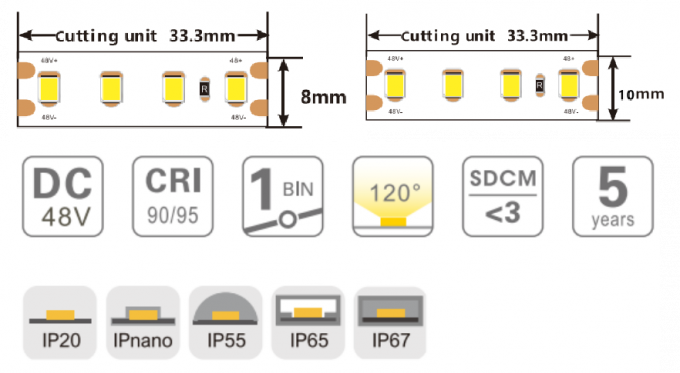

| Cutting Unit | 4LED/33.3mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | LM/M | LM/W | Energy efficiency Class |
| ＞90 | 2700K | 782 | 81 | G |
| 3000K | 821 | 86 | G | |
| 3500K | 834 | 87 | G | |
| 4000K | 860 | 90 | G | |
| 6000K | 821 | 86 | G |

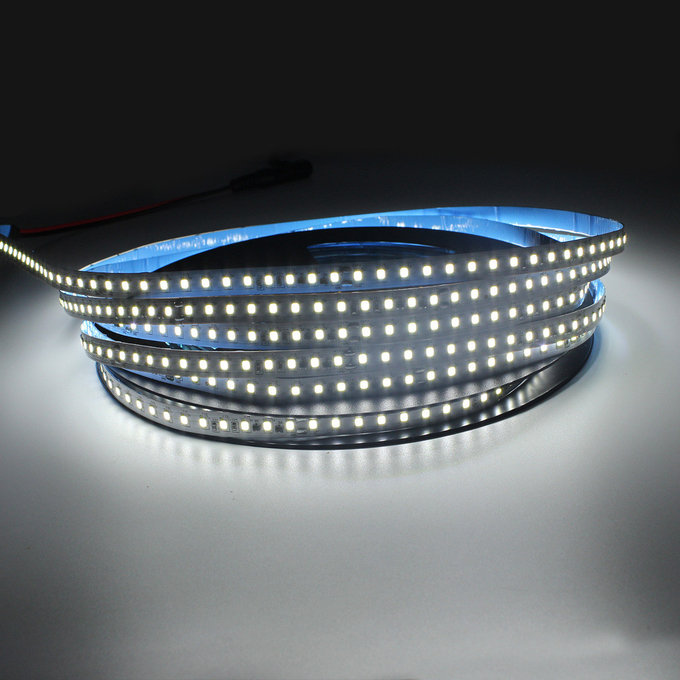

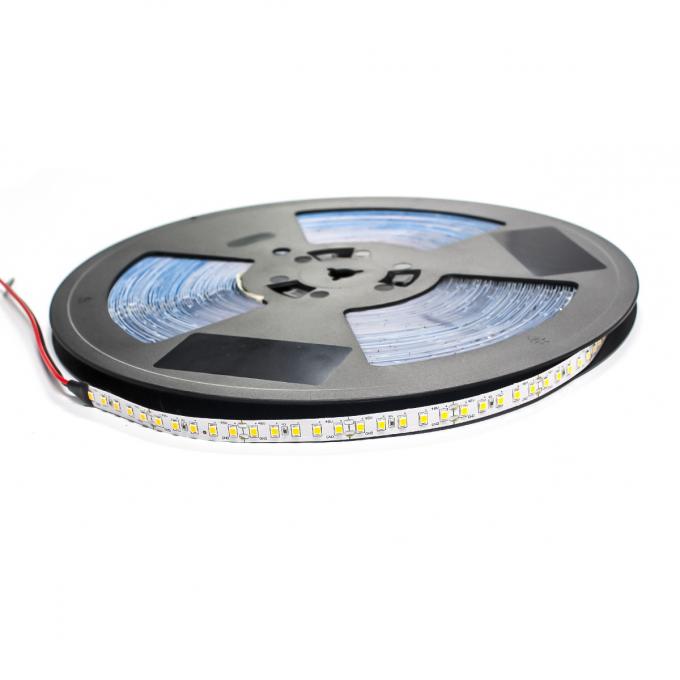

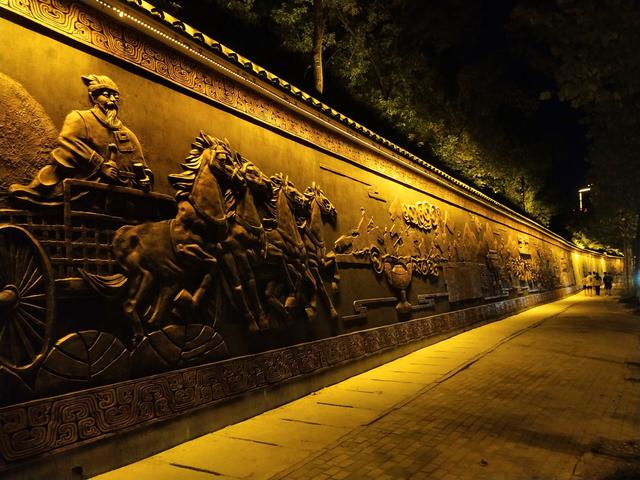

Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
