5mm Thin Flexible Led Strip 180LEDs/M Ra>90 Flexible Led Tape
| Place of Origin | CHINA |
|---|---|
| Brand Name | YIZEE LIGHT |
| Certification | CE/RoHS |
| Model Number | 36857334 |
| Minimum Order Quantity | 100M |
| Price | Negotiation |
| Payment Terms | T/T |
| Supply Ability | 50000m/month |
| Voltage | DC24V |
| Power | 9.6W/Meter |
| PCB Width(mm) | 5mm |
| IP Rating | IP20/IP65 |
| Delivery Time | 3-7days sample, mass order within 20 days |
| Packaging Details | Neutral Packing, OEM Packing Are Available |
| Other Service | OEM & ODM, One To One Communication |
Product Details
| Voltage | DC24V |
|---|---|
| Power | 9.6W/Meter |
| PCB Width(mm) | 5mm |
| IP Rating | IP20/IP65 |
Product Description
5mm Thin Flexible Led Strip 180LEDs/M Ra>90 Flexible Led Tape
Product Description
1. 180 LEDs/m with 1.2mm thick, better to be in conjunction with profiles
2. Offers 4 kinds of optional 2700-6000K white light, CRI 90
3. Only 5mm width, suitable for narrow spaces.
4. SDCM3, working time >50000H
5. Suitable for various dimming controllers
Product Parameters
| Model No | S6180-24V-5mm |
| PCB Width | 5mm |
| LED Qty/m | 180Leds/M |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | 24V DC |
| Power(W) | 9.6W/Meter |
| Luminous(lm/m) | max 715 |
| LED Chip Brand | Sanan |
| LED BINs | 3-Step, one BIN only for each order |
| CRI(RA>) | >80(CRI >90 / CRI >95 optional) |
| Color Tempertature | 2700/3000/3500/4000/6000k |
| IP Rate | IP20/IP55/IP65/IP67 |
| View Angle | 180 Degree |
| Product Size(mm) | 5000*5*1.2mm |
| Package(m/roll) | 5M/roll ( Customized length available) |

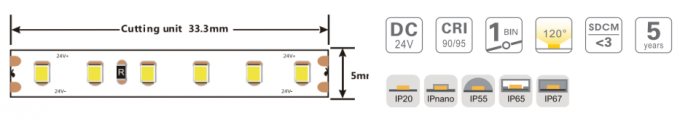

| Cutting Unit | 6LED/33.3mm |
| Adhesive Tape | 55230H 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE |
| Warranty | 5 Years |
| CRI | CCT | Lm/m | Lm/W | Energy Efficiency Class |
| ＞90 | 2700K | 650 | 68 | G |
| 3000K | 683 | 71 | G | |
| 3500K | 693 | 72 | G | |
| 4000K | 715 | 74 | G | |
| 6000K | 683 | 71 | G |

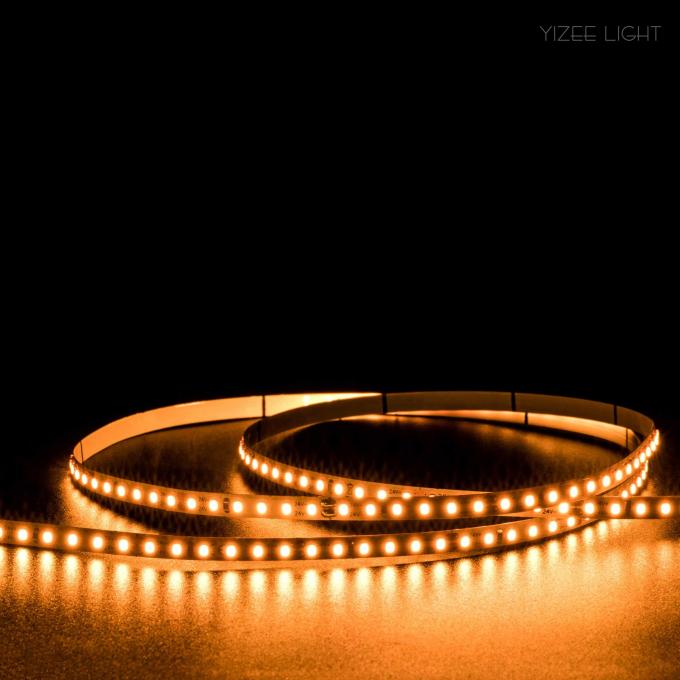

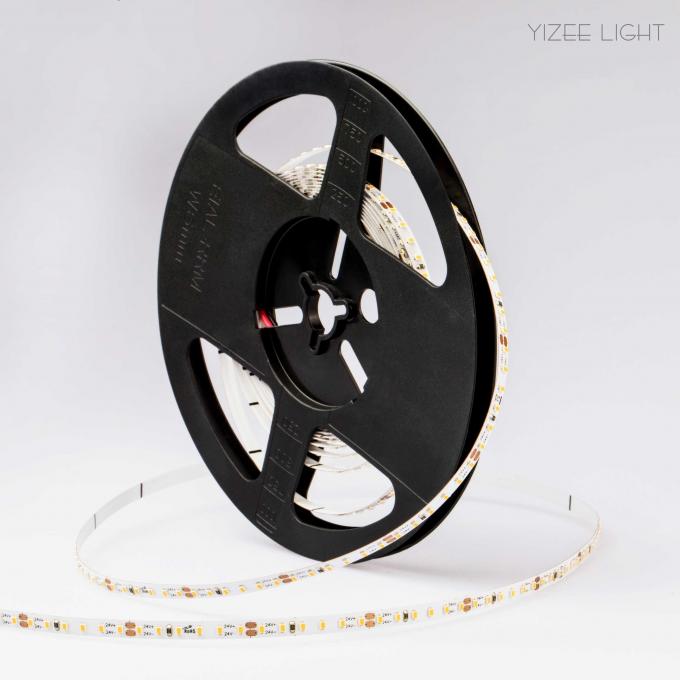

Product Images
Frequently Asked Questions
Q1: Do you have free sample?
A1: Yes, we can offer samples for testing. Please contact us for freight and sample details.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, and trial orders can be discussed according to product type.
Q3: What’s your delivery time?
A3: Samples are usually ready in 3-7 days. Bulk production depends on quantity and customization.
Q4: Do you offer OEM services?
A4: Yes, we support OEM and ODM service including logo, packaging and specification customization.
Our Services
- Professional LED strip design, installation guidance, OEM and ODM support.
- Fast response for product selection, samples, quotations and technical questions.
- Factory-direct quality control with strong packaging for export orders.
- Custom lengths, waterproof grades, CCT, voltage and accessory matching are available.
x
![Product Image]()
Introducing the 5mm Thin Flexible Led Strip 180LEDs/M Ra>90 Flexible Led Tape — a high-quality LED strip from YIZEE Lighting's professional product line. Engineered for reliability and efficiency, this product is ideal for architects, designers, and lighting contractors worldwide.
Key Features & Specifications
- CE, RoHS, and UL safety certified for global markets
- 180 LEDs/m LED density for uniform illumination without visible dots
- Ra>90 high color rendering for accurate color reproduction in retail and hospitality
- 5mm PCB width for easy installation in narrow spaces
- Custom cutting lengths available per project requirements
- 3M adhesive backing for quick and secure mounting
- 5-year manufacturer warranty with dedicated after-sales support
Recommended Applications
- Commercial and retail space illumination
- Hospitality and hotel room lighting
- Architectural accent and cove lighting
- Residential interior design projects
- Office and workspace lighting solutions
Why Choose YIZEE Lighting?
As a leading LED strip manufacturer based in Jiangsu, China, YIZEE Lighting offers:
- Factory Direct Pricing — No middlemen, competitive wholesale rates for distributors and project contractors
- OEM/ODM Service — Custom specifications including length, color temperature, IP rating, and packaging
- Free Samples — Evaluate product quality before committing to bulk orders
- Fast Lead Time — Standard products ship within 3-7 days; custom orders within 15 days
- Global Shipping — Exported to 50+ countries including USA, EU, Middle East, and Southeast Asia
Interested in this LED strip?
Get factory-direct pricing, free samples, and technical support from our engineering team.
Request a Quote WhatsApp Us
